Home >> Honda >> 2005 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 226-250 >> 233

Views 226-250: 233

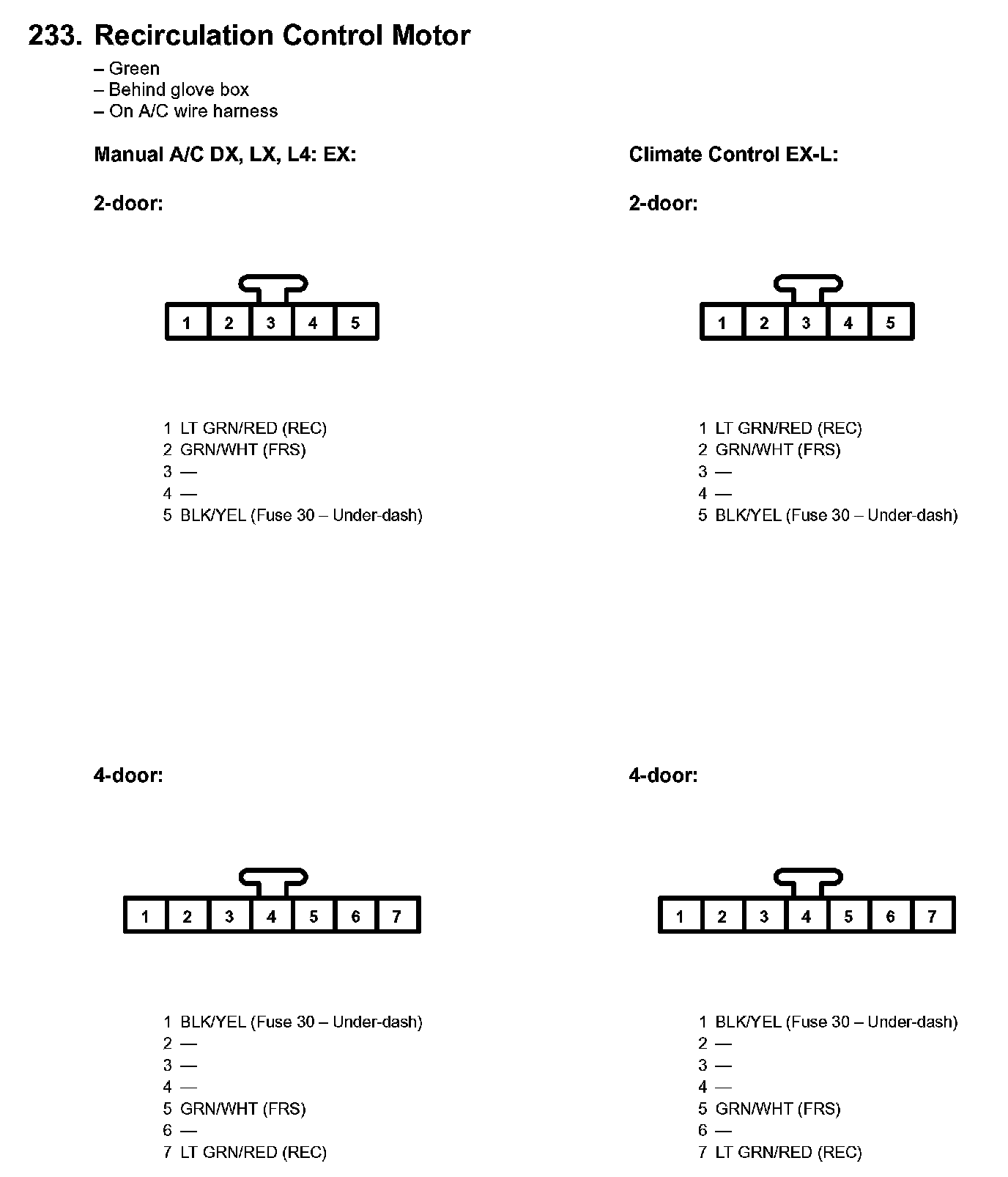

233. Recirculation Control Motor:
