Home >> Honda >> 2004 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 26-50 >> 43

Views 26-50: 43

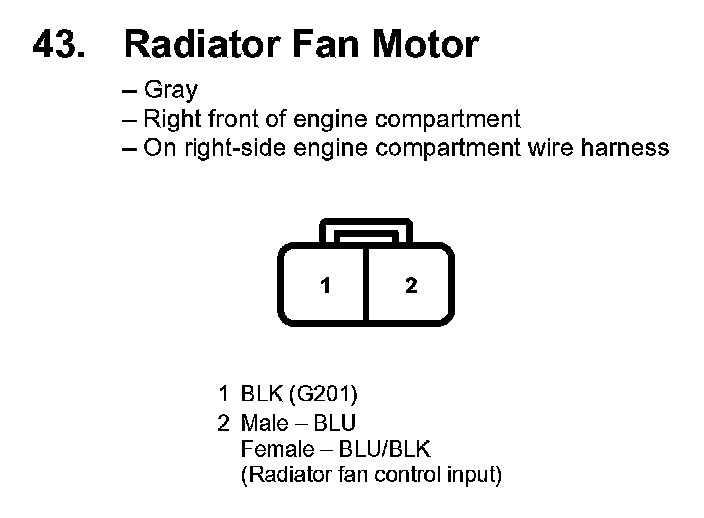

43. Radiator Fan Motor:
