Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
2004
>>
Civic Si L4-2.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Connector Views
Connector Views

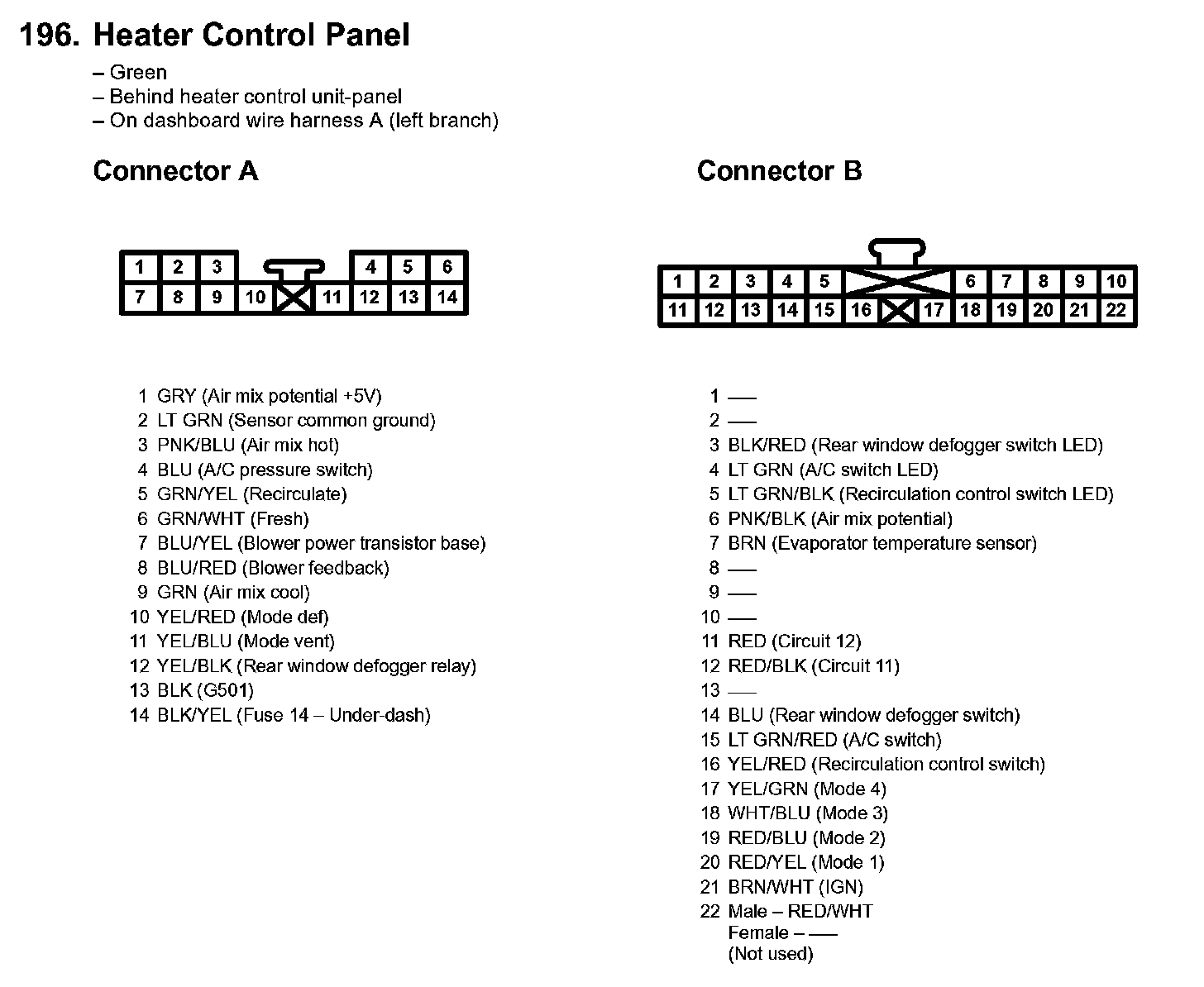

196. Heater Control Panel:
