Home >> Honda >> 2004 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 26-50 >> 29

Views 26-50: 29

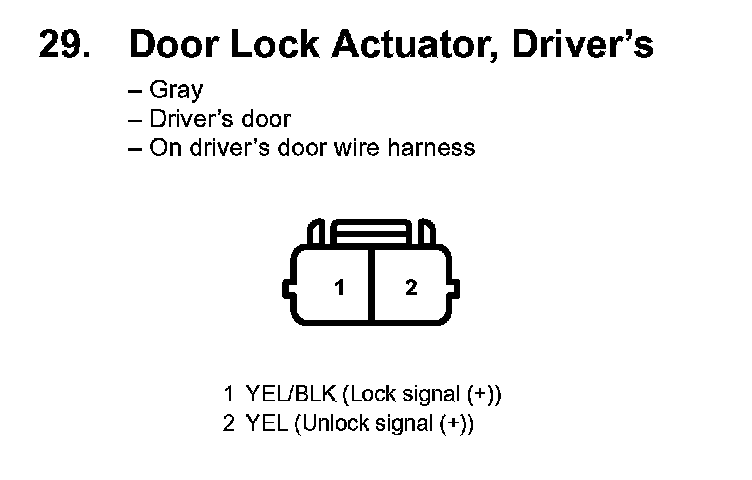

29. Door Lock Actuator, Driver's:



30. Door Lock Actuator, Passenger's:
