Home >> Honda >> 2004 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 226-243 >> 237

Views 226-243: 237

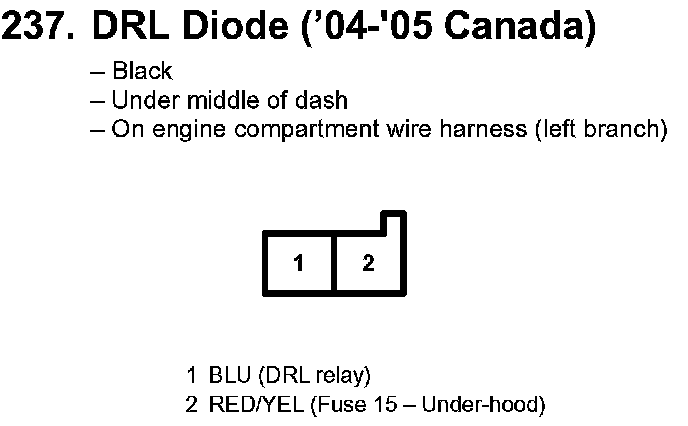

237. DRL Diode ( '04-'05 Canada):
