Home >> Honda >> 2004 >> Accord L4-2.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Instrument Panel Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

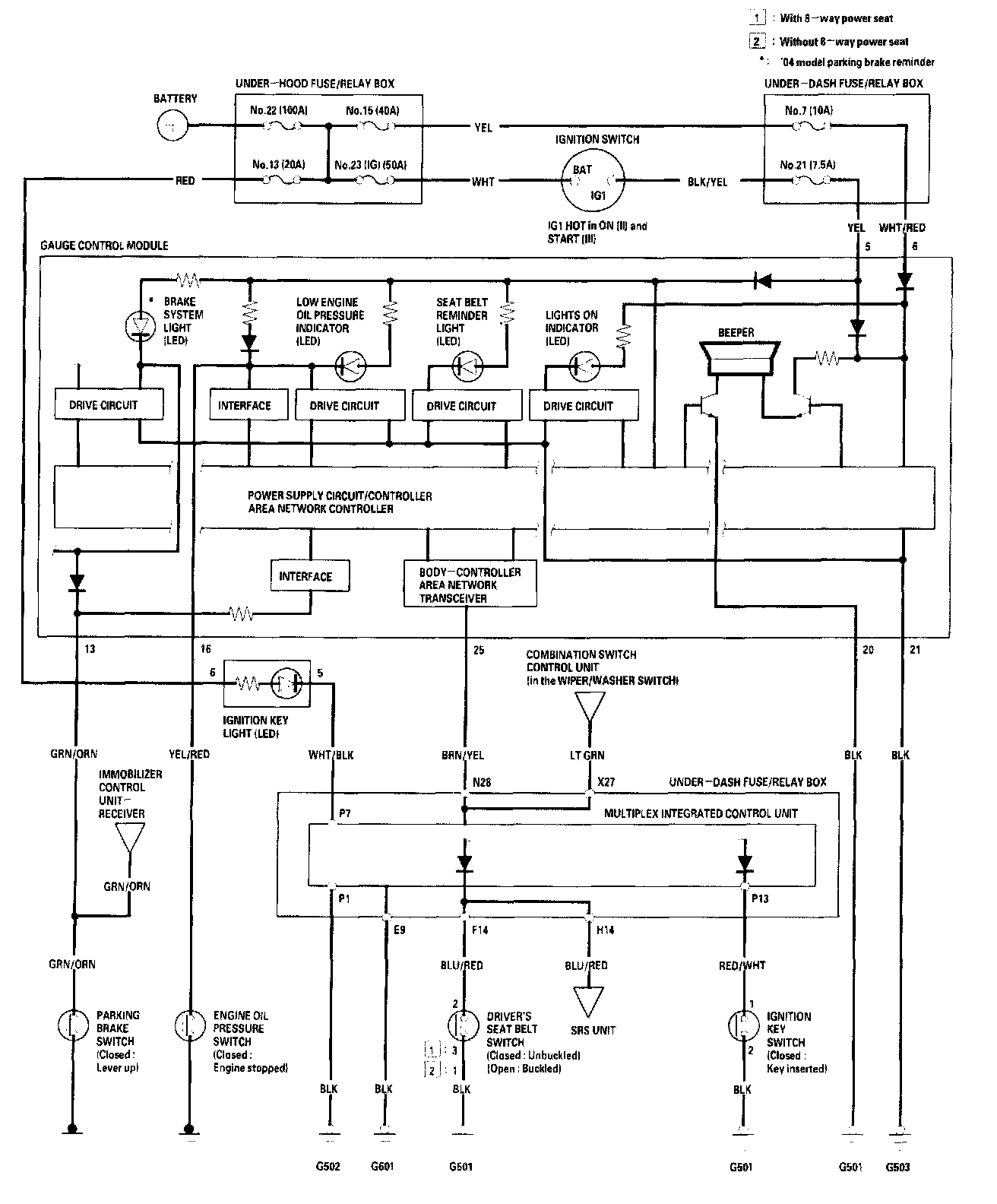

Reminder Systems, Key Light Timer, And Engine Oil Pressure Indicator Systems - Circuit Diagram:
