Accord L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Speed Sensor, A/T
>>
Countershaft Speed Sensor
Countershaft Speed Sensor

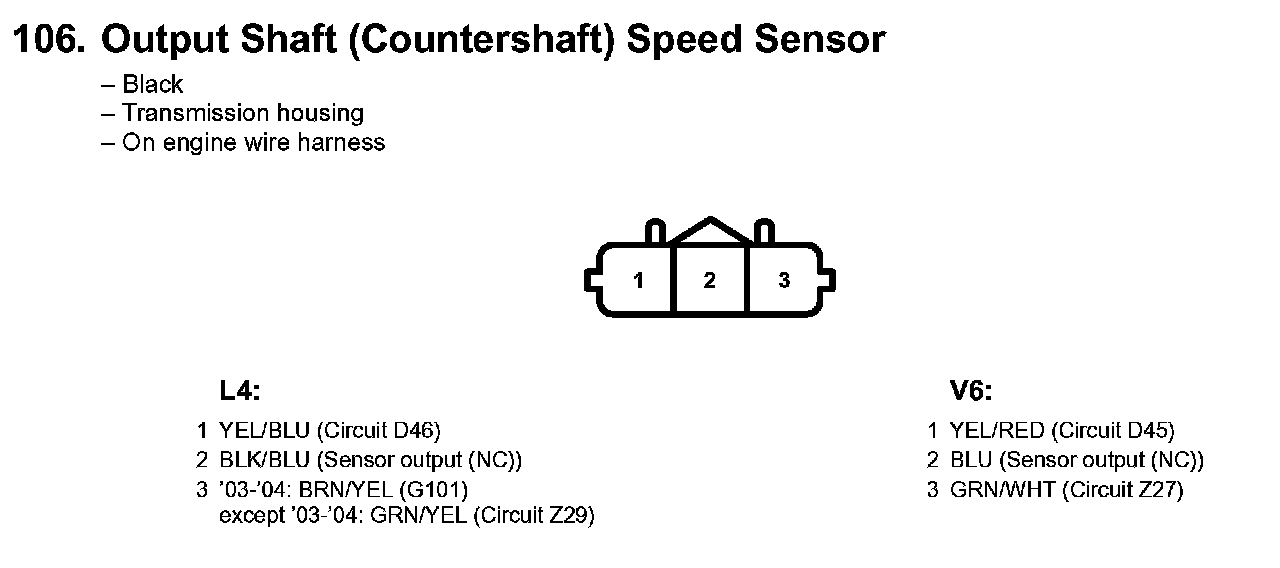

106. Output Shaft (Countershaft) Speed Sensor:
