Insight L3-1.0L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Disassembly
Disassembly

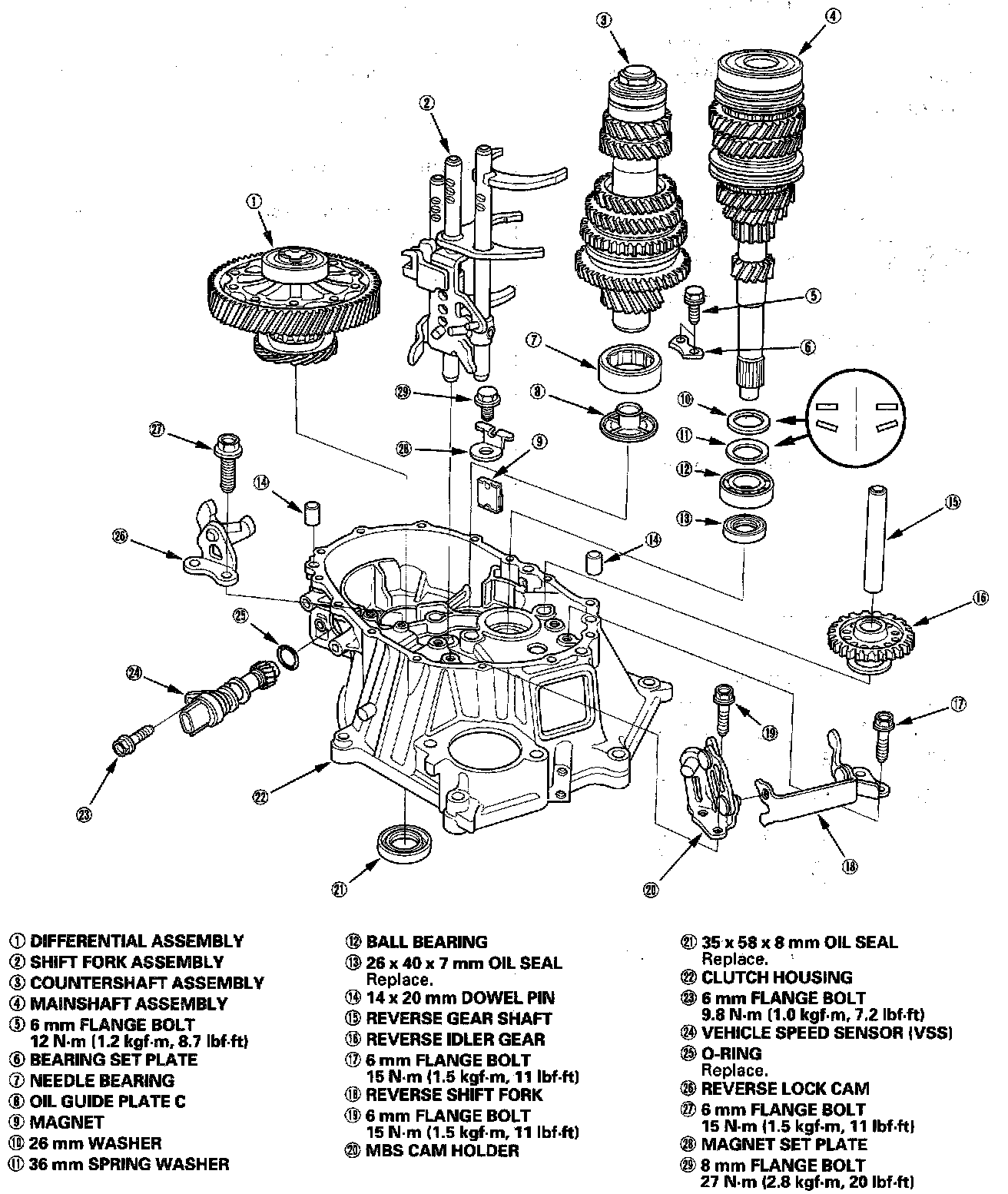

Exploded View-Clutch Housing

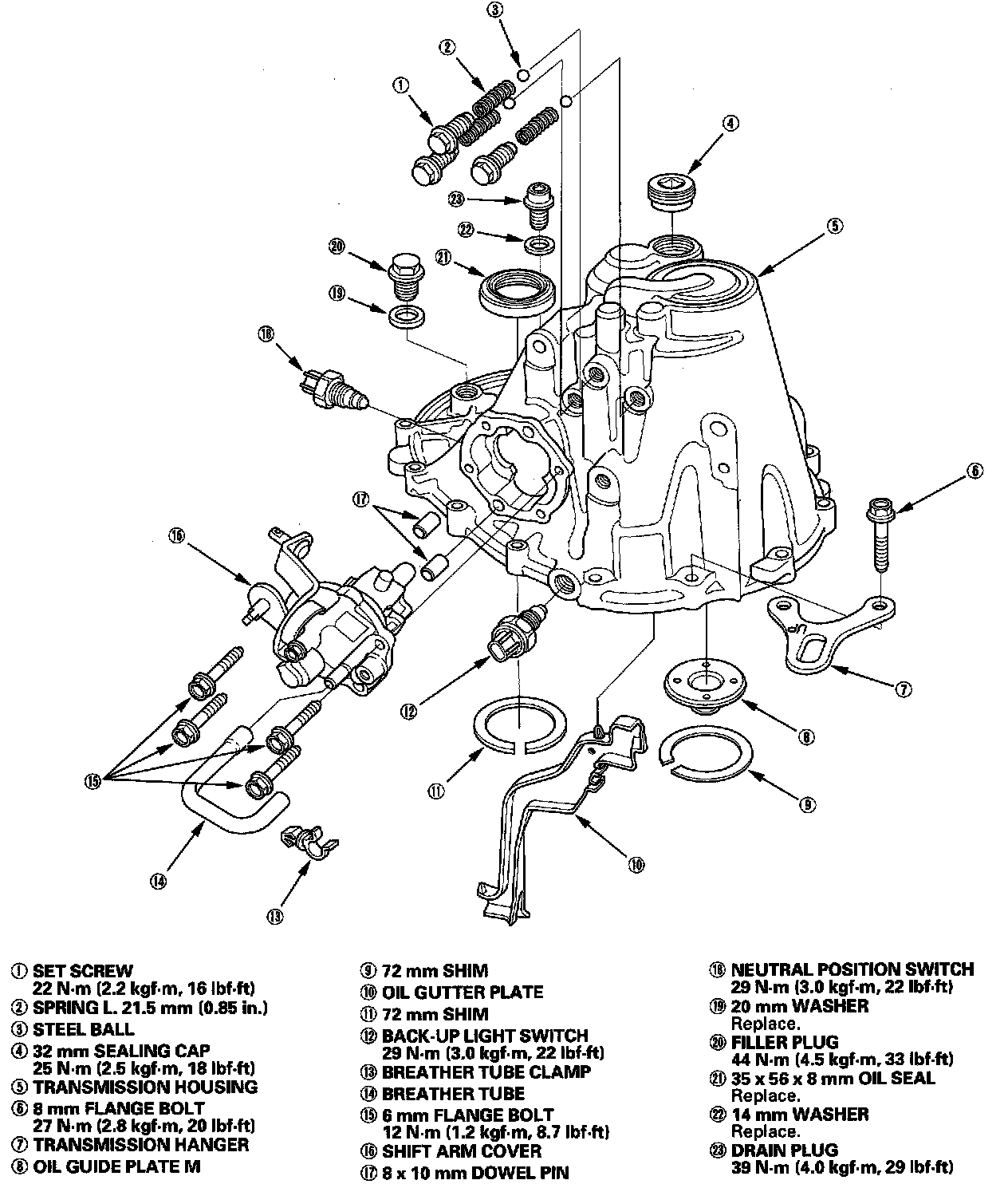

Exploded View-Transmission Housing
