Home >> Honda >> 2003 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

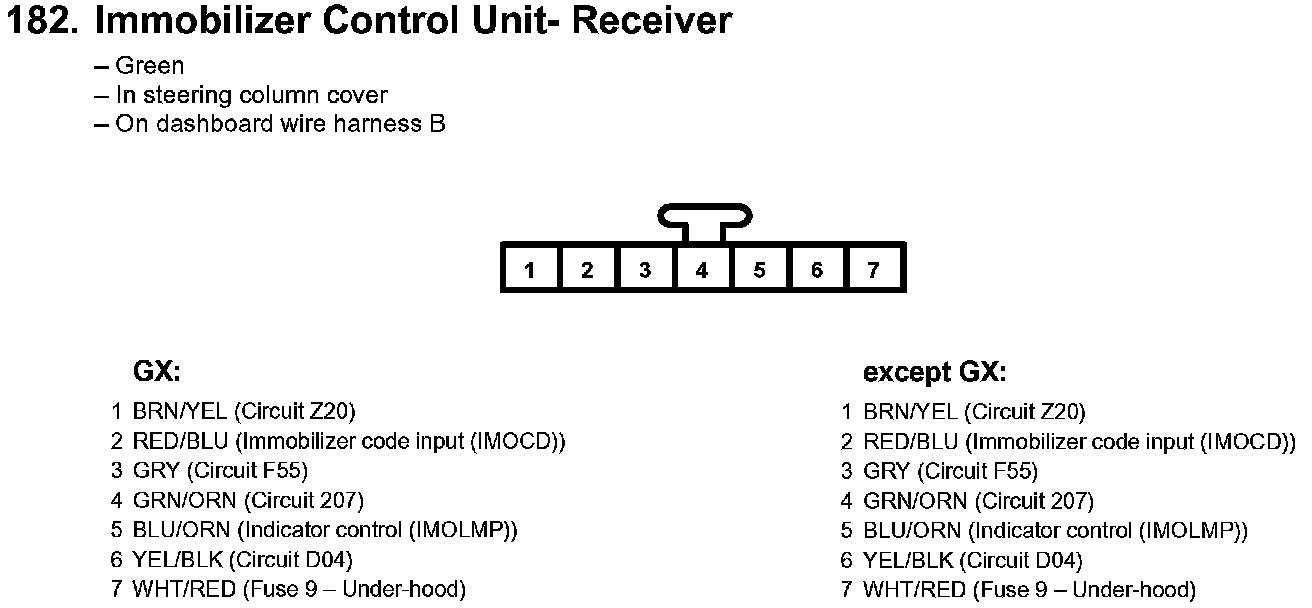

182. Immobilizer Control Unit - Receiver:

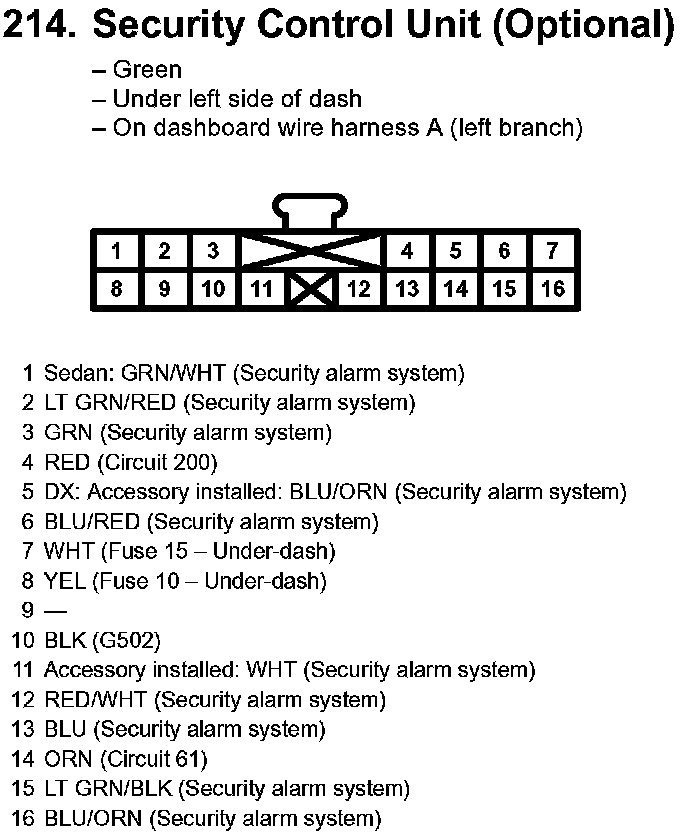

214. Security Control Unit (Optional):
