Home >> Honda >> 2003 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 226-241 >> 241

Views 226-241: 241

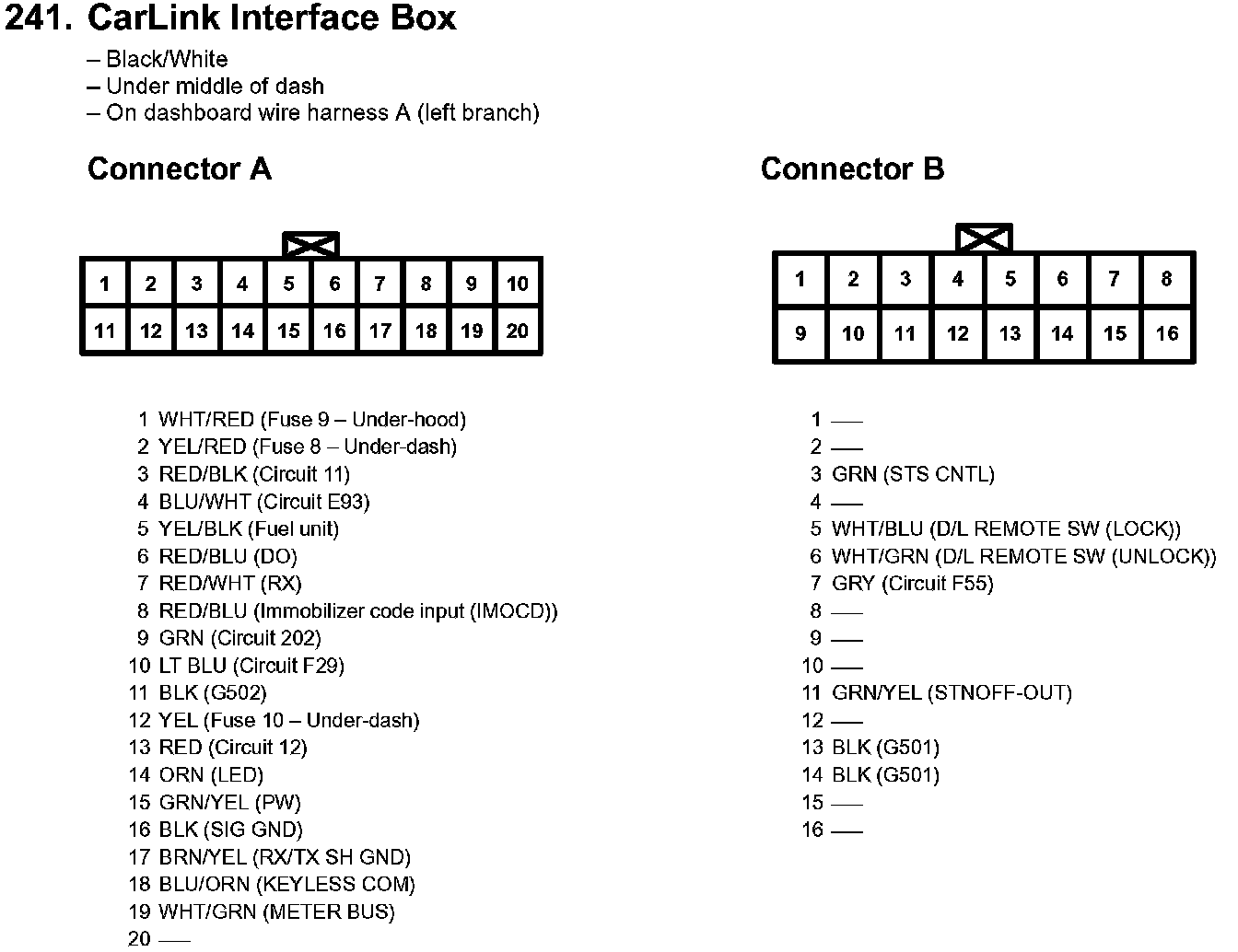

241. CarLink Interface Box:
