Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

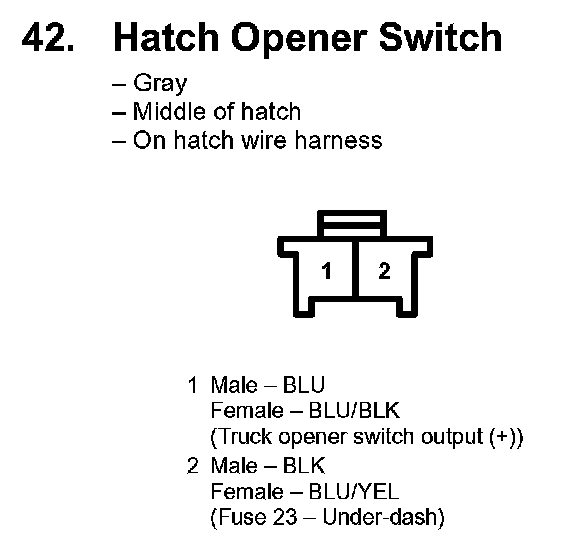

42. Hatch Opener Switch:

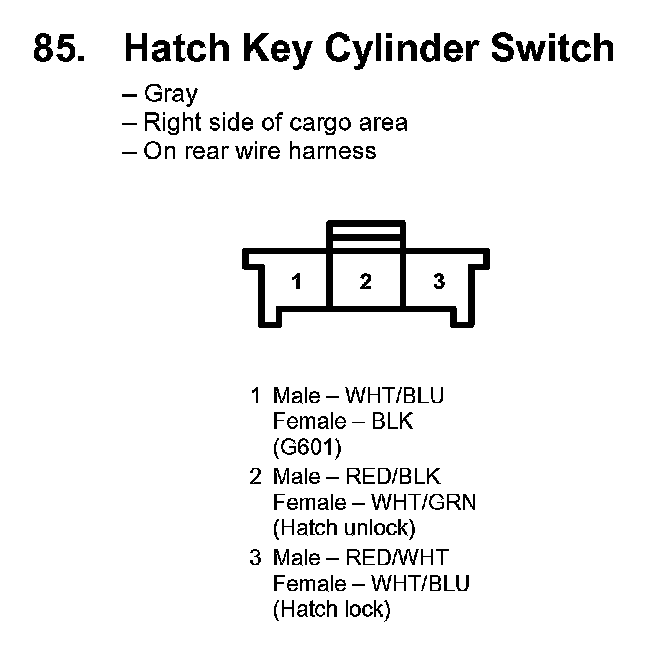

85. Hatch Key Cylinder Switch:
