Evaporator Temperature Sensor / Switch
Evaporator Temperature Sensor / Switch

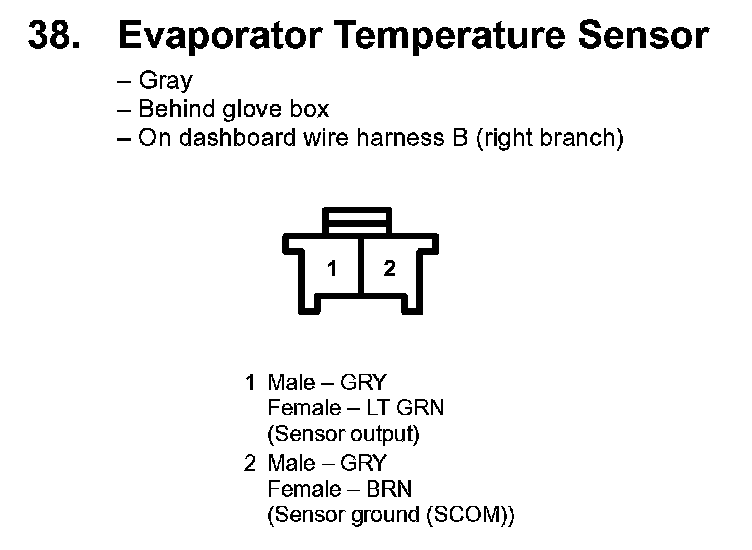

38. Evaporator Temperature Sensor:
58. Evaporator Temperature Sensor:
