Transmission Housing Seal Replacement

TOOLS REQUIRED
- 07749-0010000 Driver
- 07JAD-PH80101 Oil Seal Driver Attachment
- 07JAD-PH80400 Pilot, 28 x 30 mm
- 07LAD-SM40100 Seal Driver Attachment
- Or Equivalent

TRANSMISSION HOUSING:

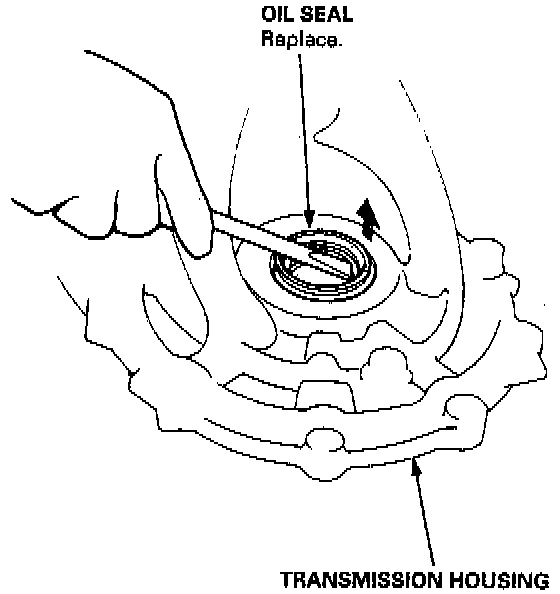

1. Remove the oil seal from the transmission housing.

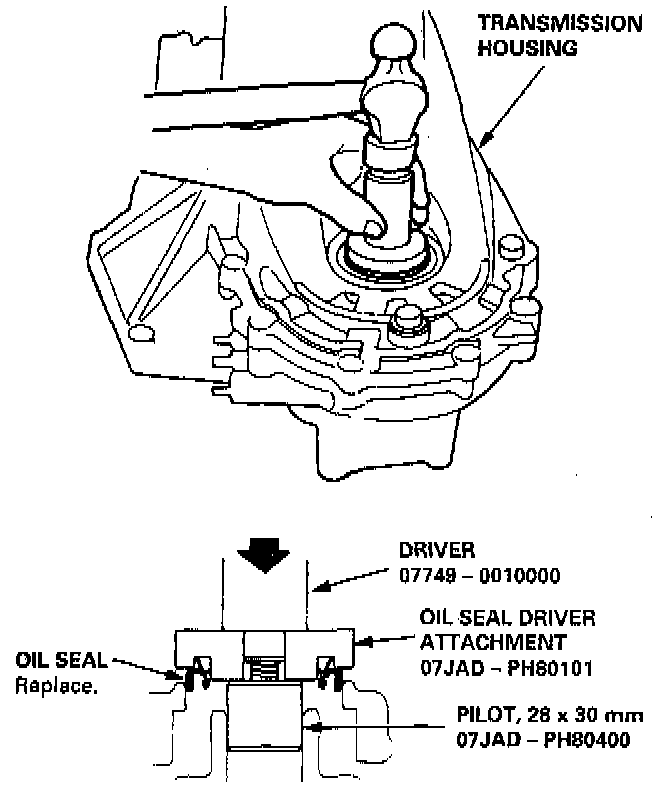

2. Install the new oil seal into the transmission housing using the special tools.

CLUTCH HOUSING:

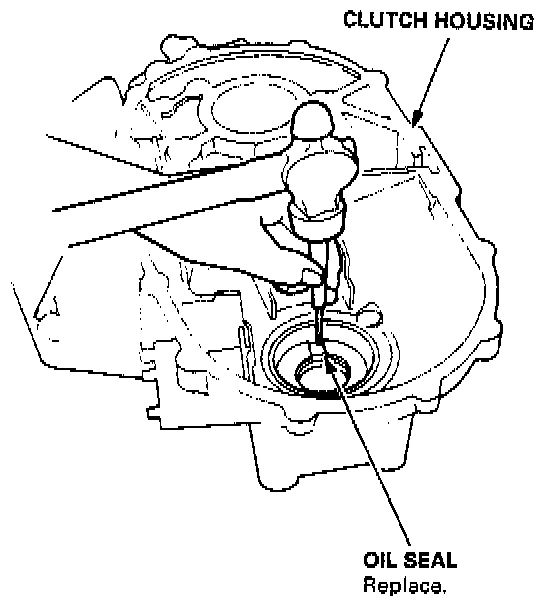

1. Remove the oil seal from the clutch housing.

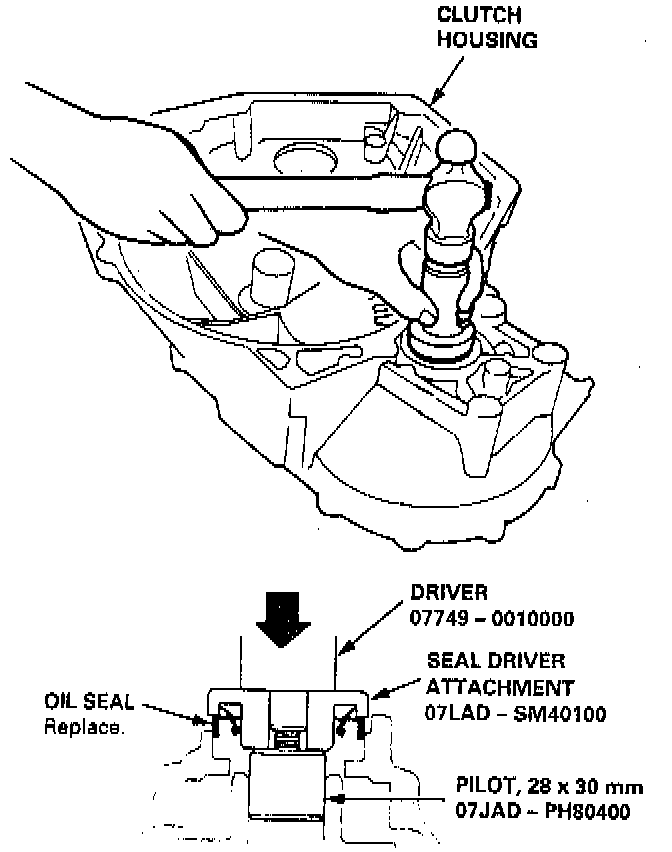

2. Install the new oil seal into the clutch housing using the special tools.
