Mainshaft Seal Replacement

TOOLS REQUIRED
- 07736-A01000B Adjustable Bearing Puller, 25-40 mm
- 07749-0010000 Driver
- 07746-0010300 Attachment, 42 x 47 mm
- 07746-0010500 Attachment, 62 x 68 mm
- Or Equivalent

1. Remove the differential assembly.

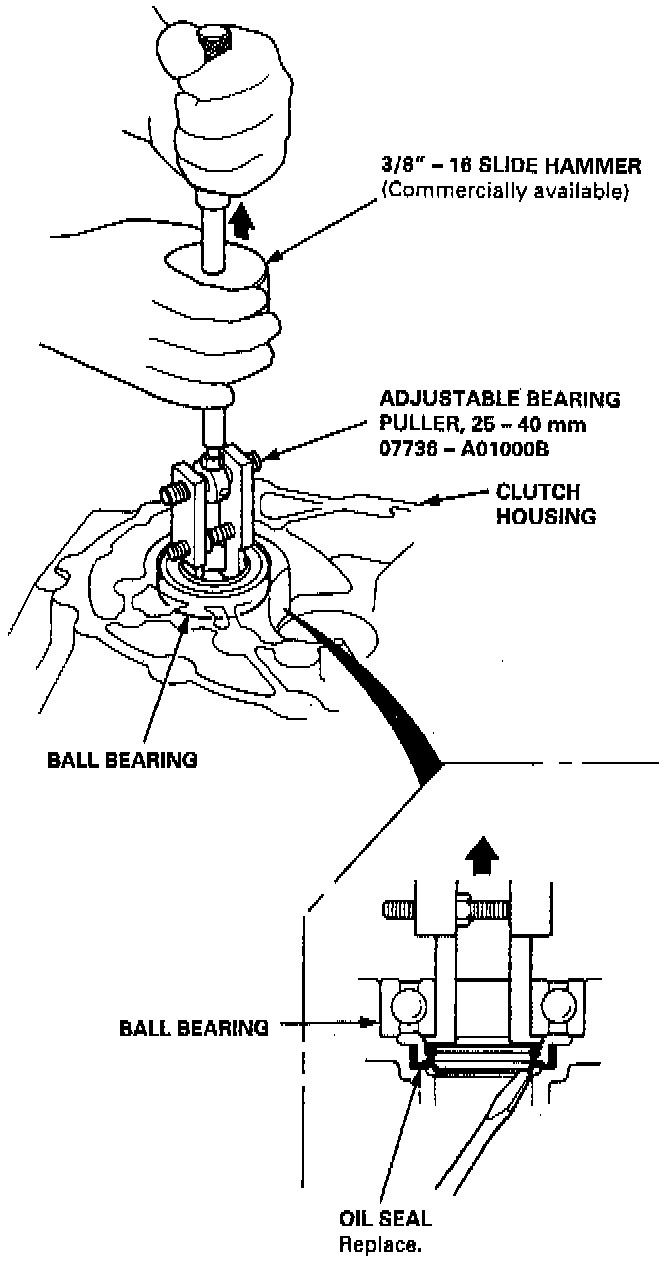

2. Remove the ball bearing using the special tool.
3. Remove the oil seal from the clutch side.

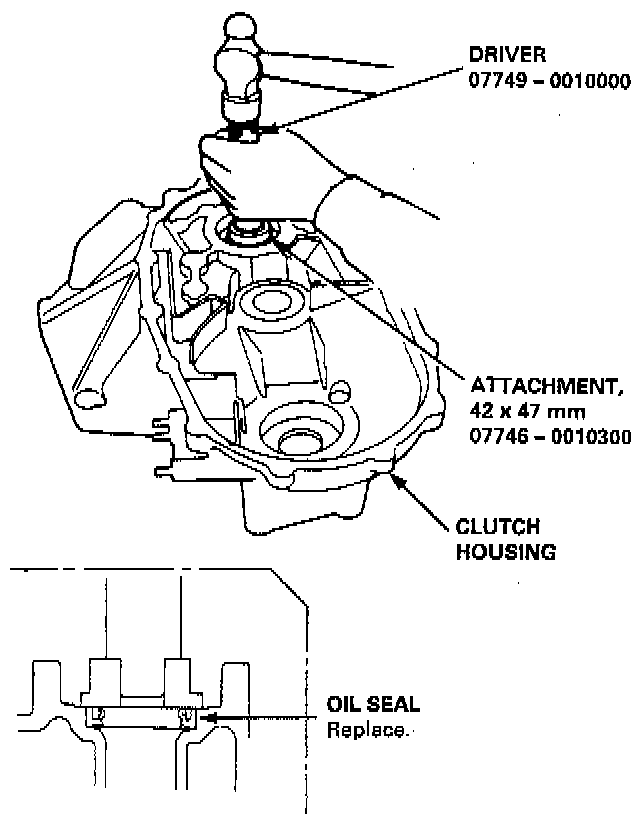

4. Drive the new oil seal in from the transmission side using the special tools.

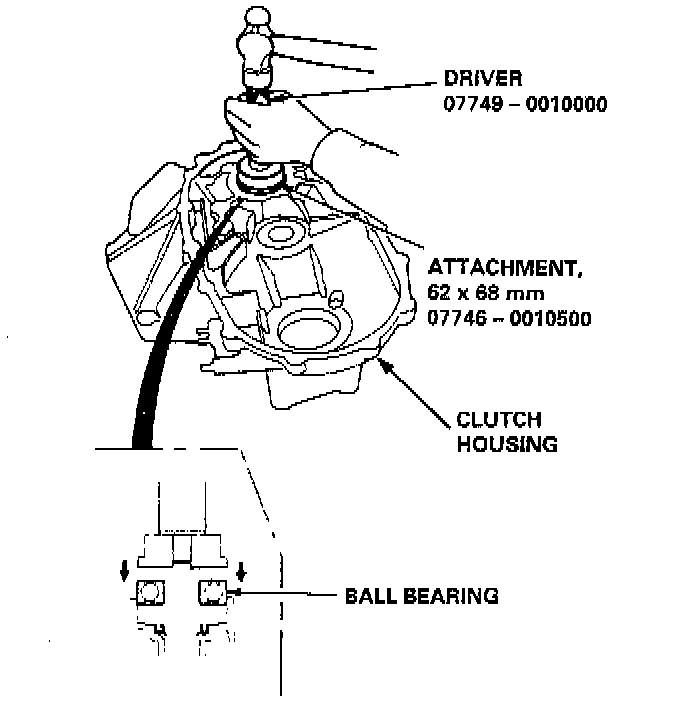

5. Drive the new ball bearing in from the transmission side using the special tools.
