Shifter A/T: Service and Repair
REMOVAL / INSTALLATION1. Shift the transmission into the [R] position.
2. Remove the center console.
3. Remove the nut securing the shift cable end, then separate the shift cable from the shift lever assembly.
NOTE: Do not remove the shift cable by the shift cable guide pipe.
4. Remove the shift lever knob.
5. Remove the A/T gear position indicator panel light from the A/T gear position indicator panel.
6. Remove the A/T gear position indicator panel assembly from the detent bracket.
7. Disconnect the shift lock solenoid connector, reverse relay connector, and mode switch connector.
8. Remove the four bolts securing the shift lever bracket base, then remove the shift lever subassembly.
9. Install the shift lever in the reverse order of removal.
NOTE:
- Align the flat surfaces of the mounting bolt with the shift cable end hole, then install the cable end on the mounting bolt.
- Do not install the shift cable by the shift cable guide pipe.

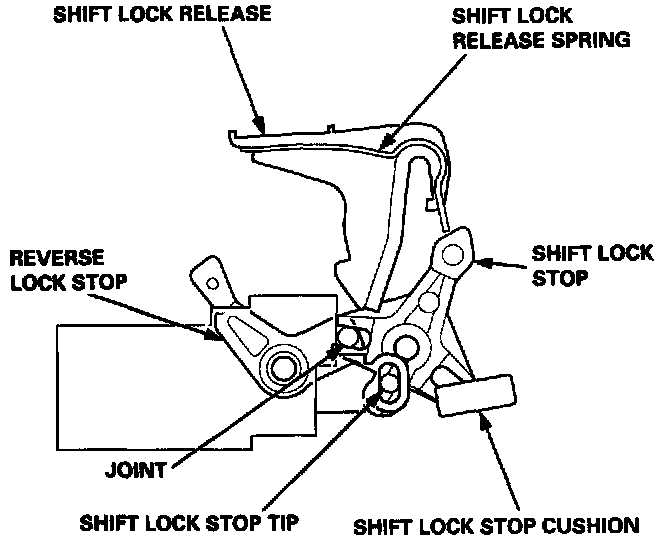

SHIFT LOCK / REVERSE MECHANISM
NOTE: If the shift lock/reverse lock mechanism is assembled incorrectly, the shift lever will not operate normally.
1. Install the shift lock stop and reverse lock stop together by aligning their joint.
2. Install the shift lock release spring on the shift lock release.
3. Make sure the shift lock stop cushion is installed in the direction shown.
4. Install the shift lock solenoid by aligning the shift lock solenoid plunger with the tip of the shift lock stop.
