Prelude L4-2156cc 2.2L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

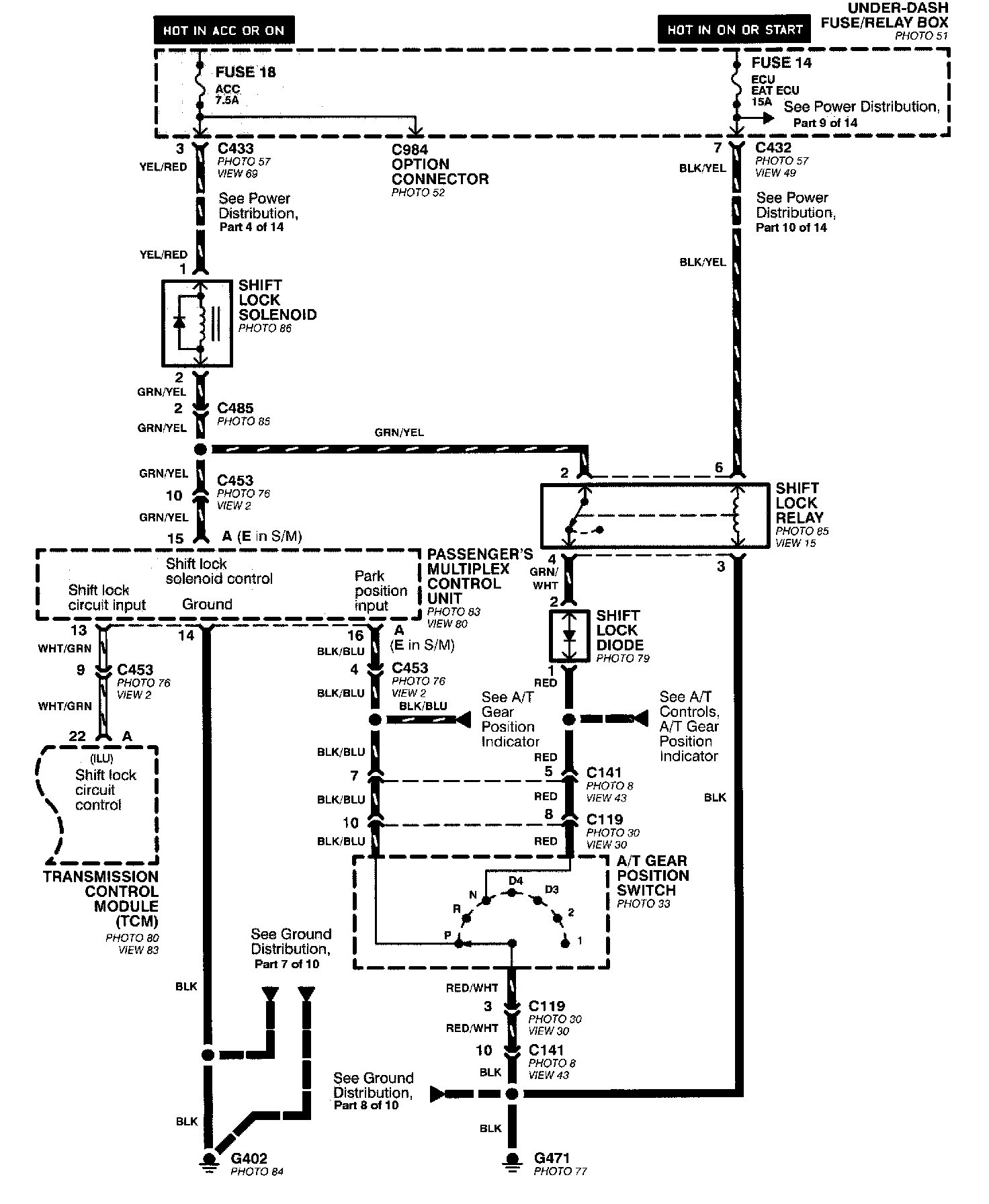

Interlock System (Part 1 Of 2):

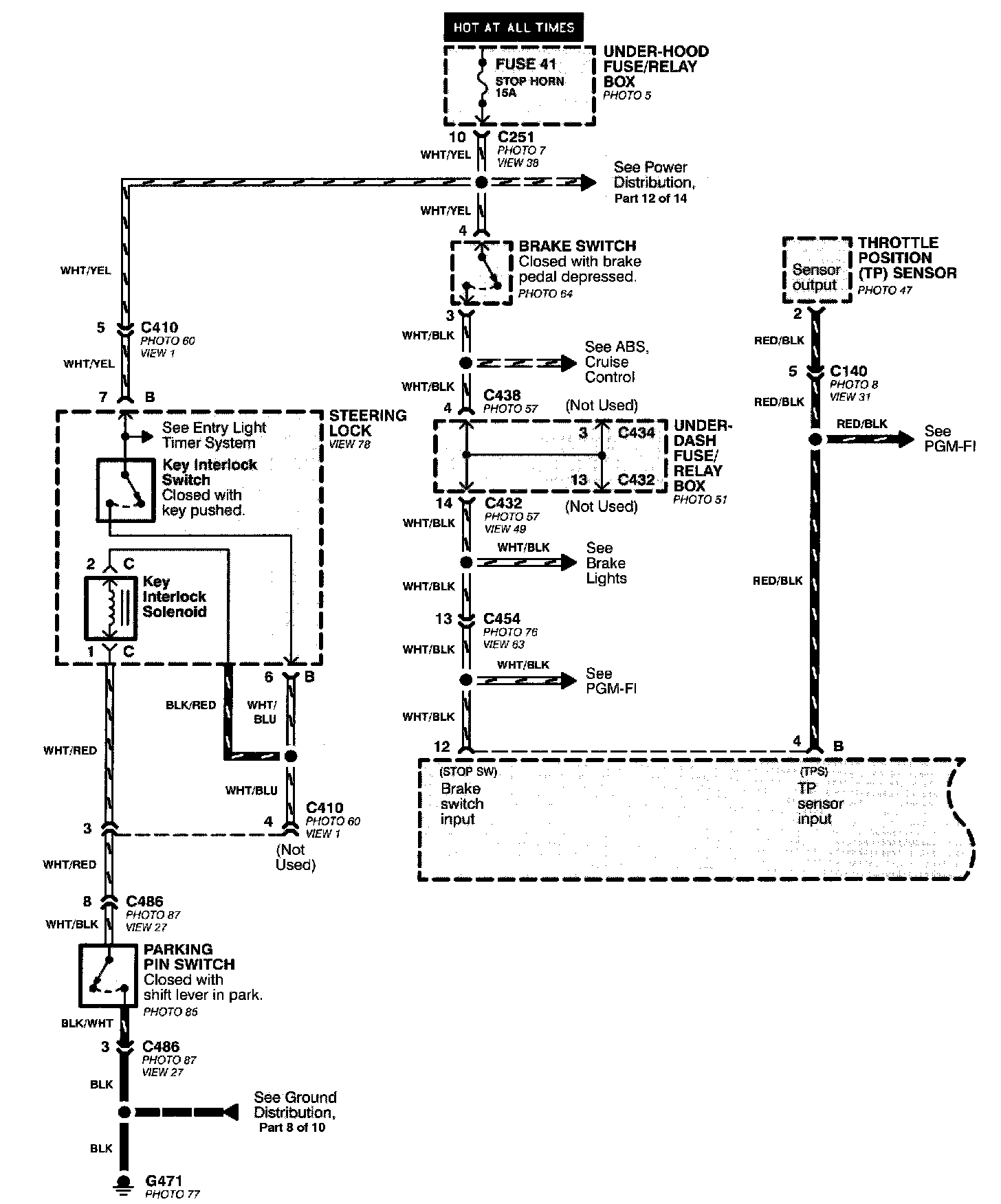

Interlock System (Part 2 Of 2):
