Oil Seals

OIL SEALS
Removal

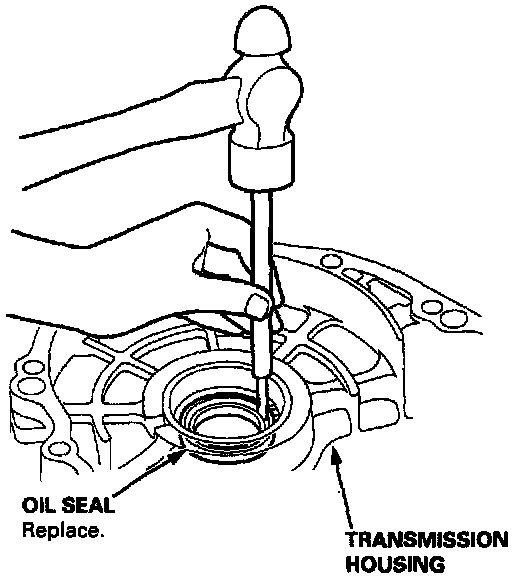

1. Remove the oil seal from the transmission housing.

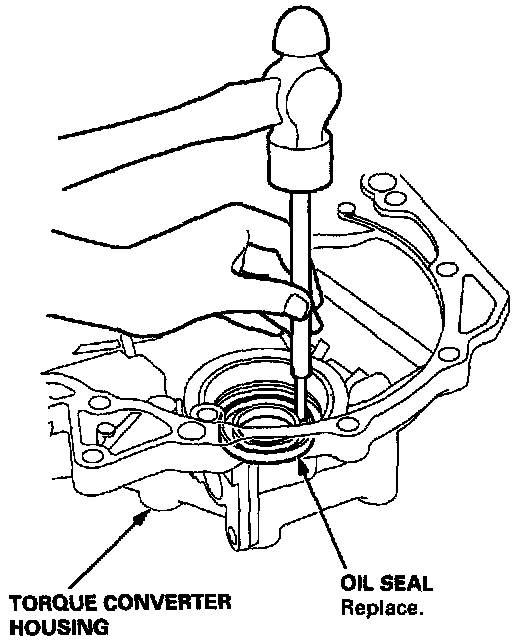

2. Remove the oil seal from the torque converter housing.

Installation

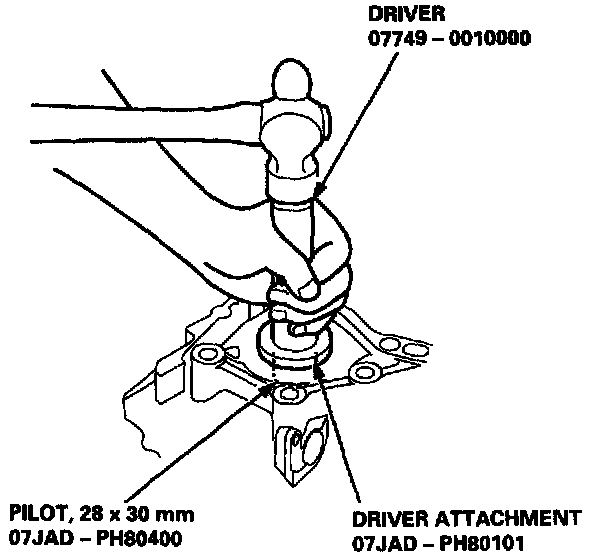

1. Install the oil seal in the transmission housing using the special tools as shown.

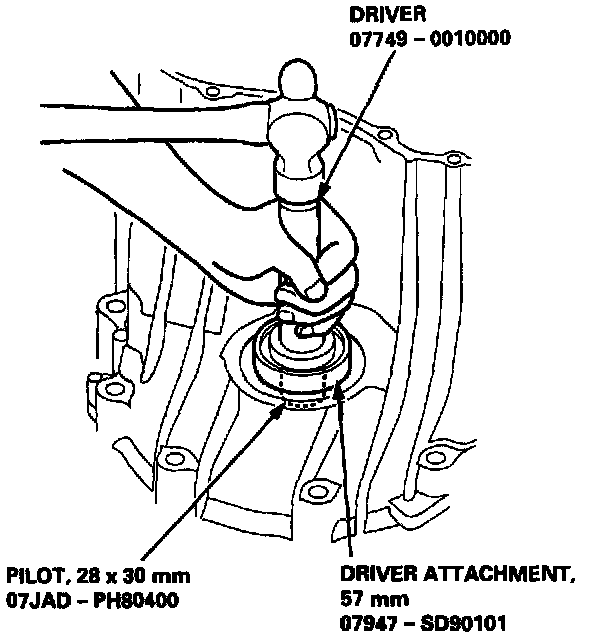

2. Drive the oil seal into the torque converter housing using the special tools as shown.
