Accumulator Body/Servo Body
Accumulator Body/Servo Body

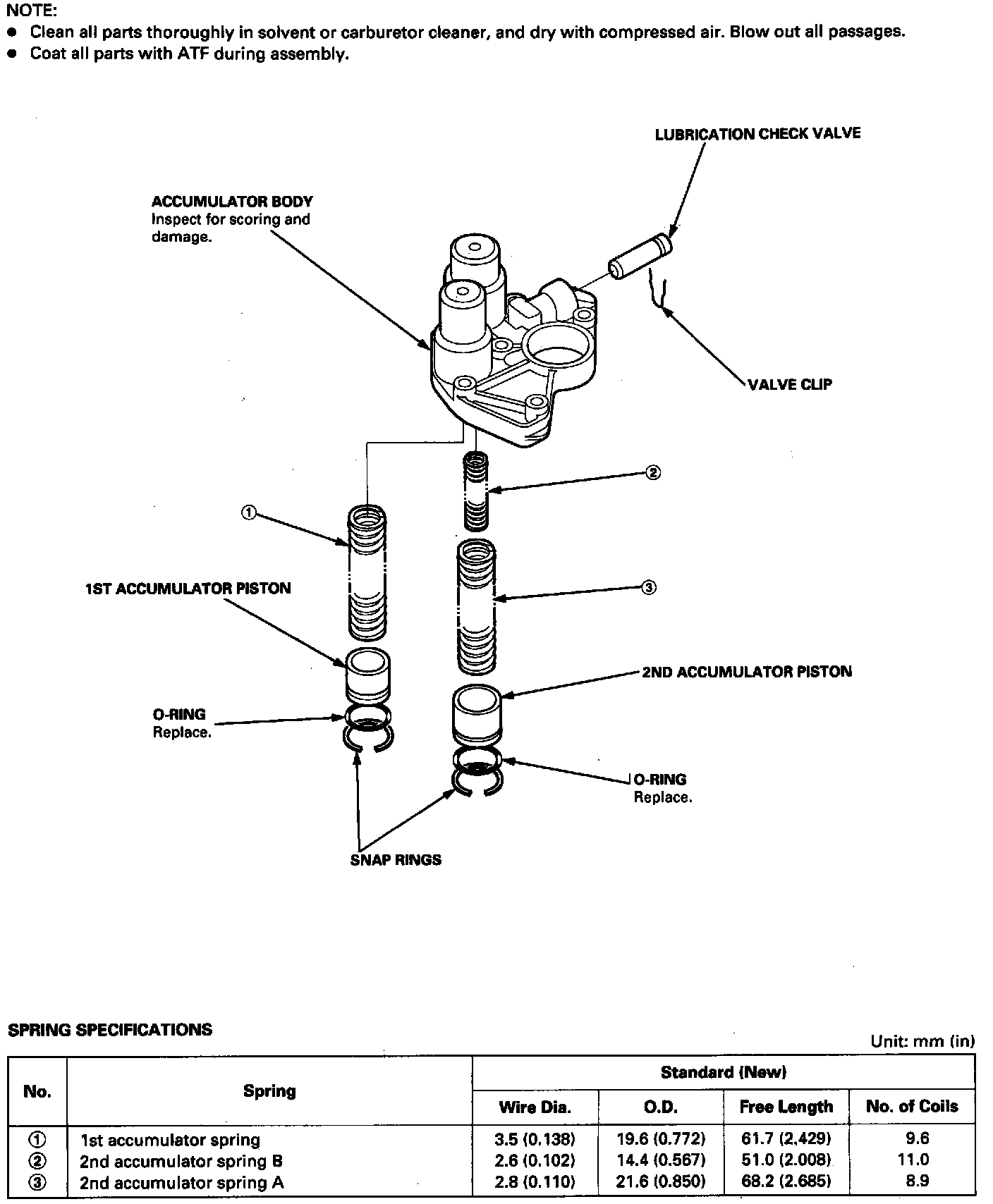

ACCUMULATOR BODY
Disassembly / Inspection / Reassembly

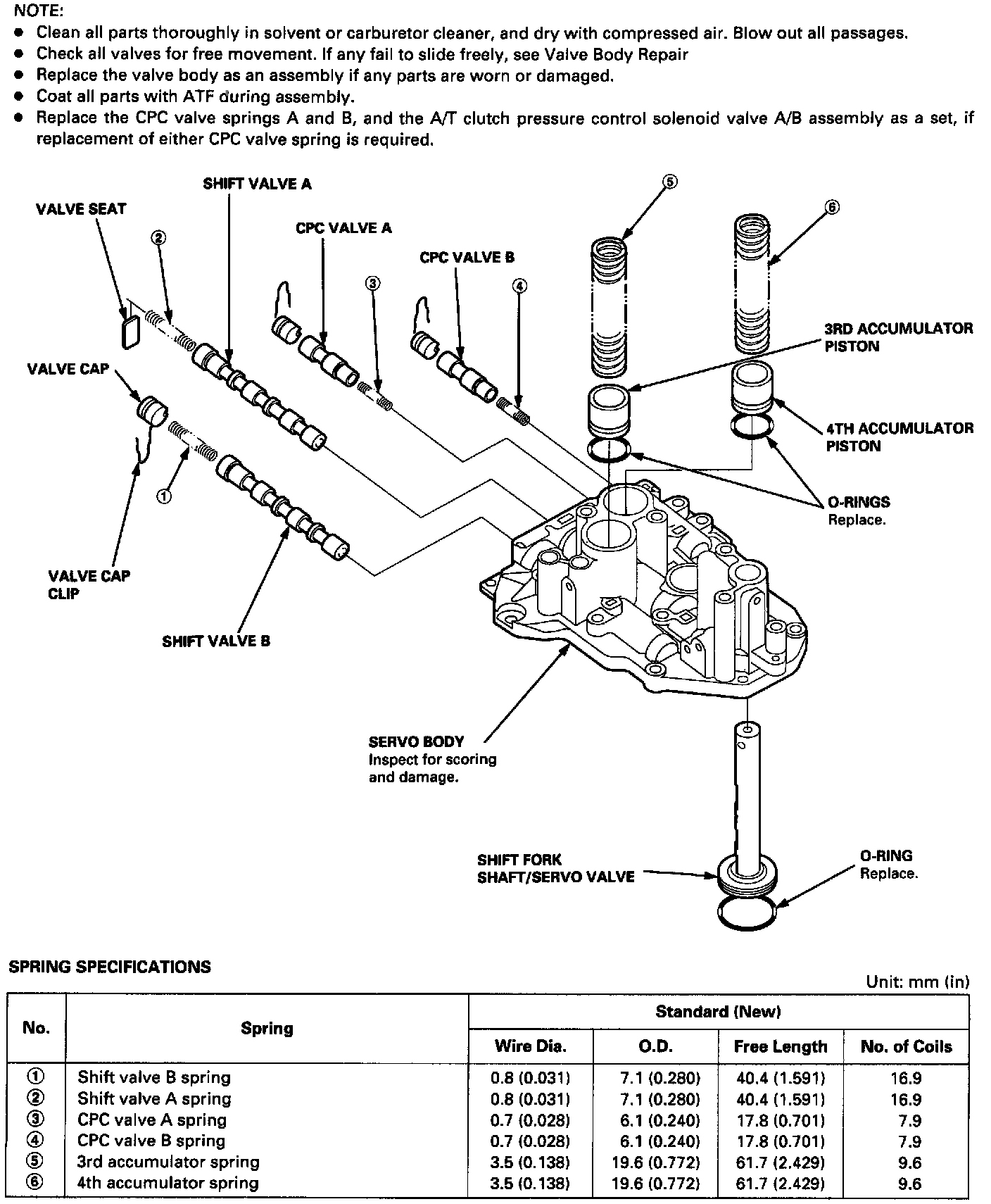

SERVO BODY
Disassembly / Inspection / Reassembly
