Bearing Hub Replacement

TOOLS REQUIRED
- 07746-0010300 Attachment, 42 x 47 mm
- 07749-0010000 Driver
- 07746-0010500 Attachment, 62 x 68 mm
- Or Equivalent

NOTE: Check the bearing for wear, damage, and rough movement. If the bearing is worn or damaged, replace it.

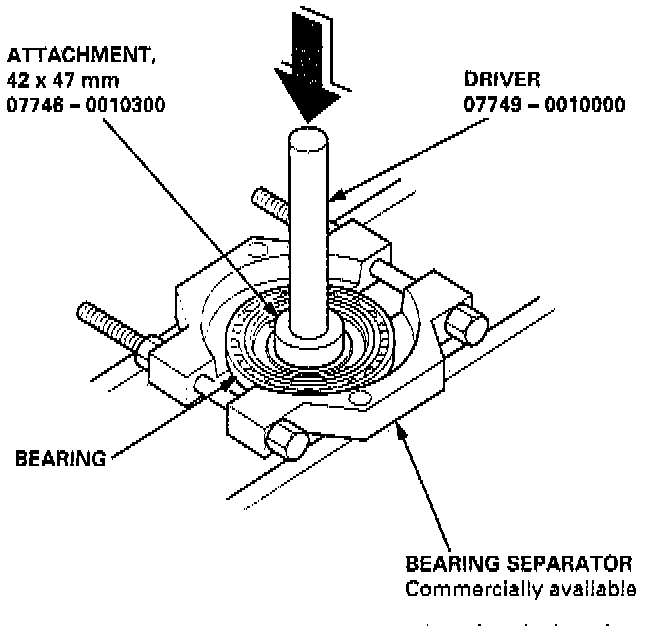

1. Remove the bearing from the bearing hub using a bearing separator and a press as shown.

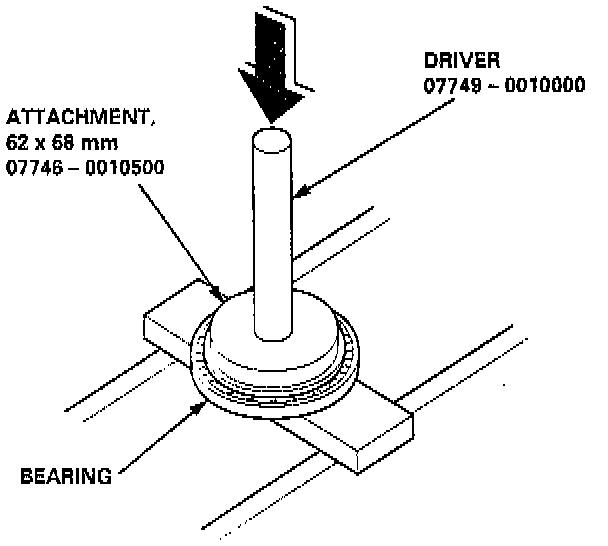

2. Install the new bearing on the bearing hub using the special tool and a press as shown.
