Removal

SRS components are located in this area Review the SRS component locations, precautions, and procedures in the SRS section before performing repairs or service.

NOTE: Before removing the steering wheel, align the front wheels straight ahead.





REMOVAL
1. Remove the driver's airbag assembly from the steering wheel.

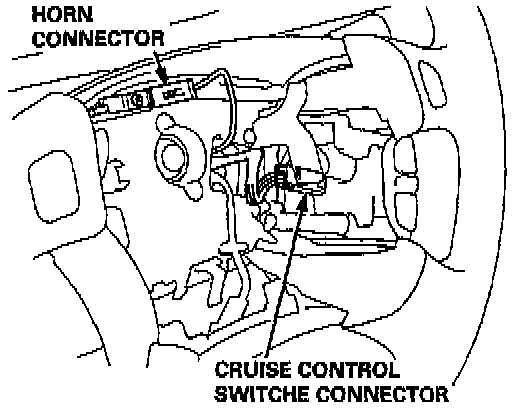

2. Disconnect the horn connector, and cruise control switch connector.





3. Loosen the steering wheel bolt, then install a steering wheel puller on the steering wheel and remove it.

CAUTION:
- Do not tap on the steering wheel or the steering column shaft when removing the steering wheel.
- If you thread the puller bolts into the wheel hub more than five threads, the bolts will hit the wheel lower cover and damage it. To prevent this, install a pair of jam nuts five threads up on each puller bolt.
