Installation

INSTALLATION

CAUTION: Do not tap on the steering wheel or steering column shaft when installing the steering wheel.

NOTE: Before removing the steering wheel, align the front wheels straight ahead.

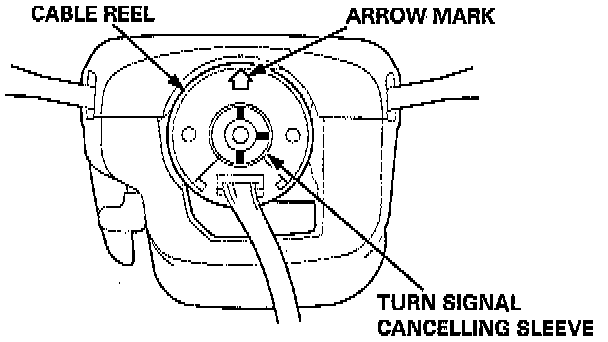

1. Before installing the steering wheel, center the cable reel. Do this by first rotating the cable reel clockwise until it stops. Then rotate it counterclockwise approximately two and half turns. The arrow mark on the cable reel label point should point straight up.

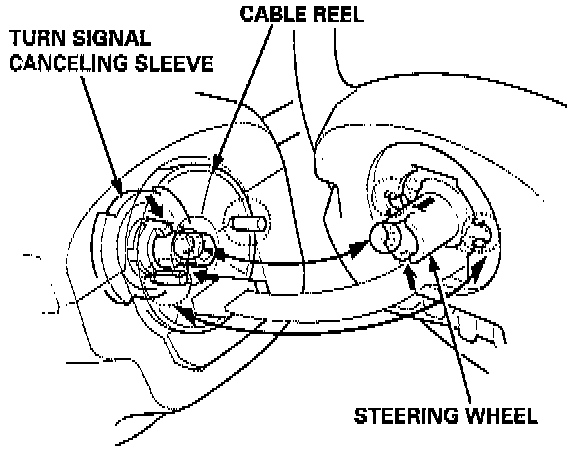

2. Position the turn signal canceling sleeve as shown and install the steering wheel by aligning the two tabs.

NOTE:
- Be sure the steering wheel engages with the cable reel and turn signal canceling sleeve.
- Before installing the steering wheel bolt, check the turn signal canceling operation.

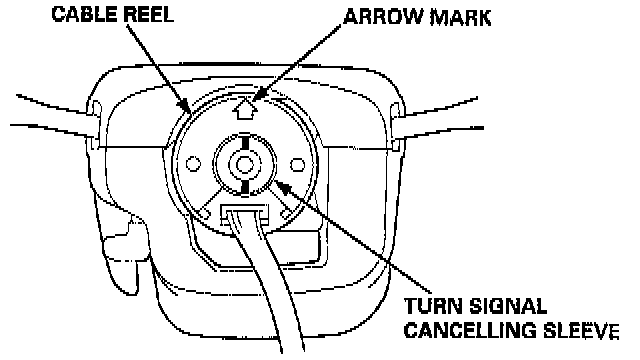

- Vehicles with ATTS: Position the turn signal canceling sleeve as shown, and install the steering by aliening the three tabs.

3. Install the steering wheel bolt, and tighten it to 38 Nm (28 ft. lbs.).
4. Connect the horn connector and cruise control switch connector.
5. Install the driver's airbag assembly, and confirm proper system operation.
6. With the front wheels in the straight ahead (mechanical neutral position), let the ATTS control unit memorize the steering angle sensor neutral position.
7. Check the horn and cruise control set/resume switches for proper operations.
