Glass Stay,Sliderlifter,Guide Raiis,Cable Assembly & Sunshade

Glass Stay, Slider, Lifter, Guide RaiI5, Cable Assembly, and Sunshade Removal/Installation

CAUTION: Wear gloves to remove and install the glass stay, slider, lifter, guide rails, cable assembly, and sunshade.

1. Remove the frame.
2. Remove the motor.

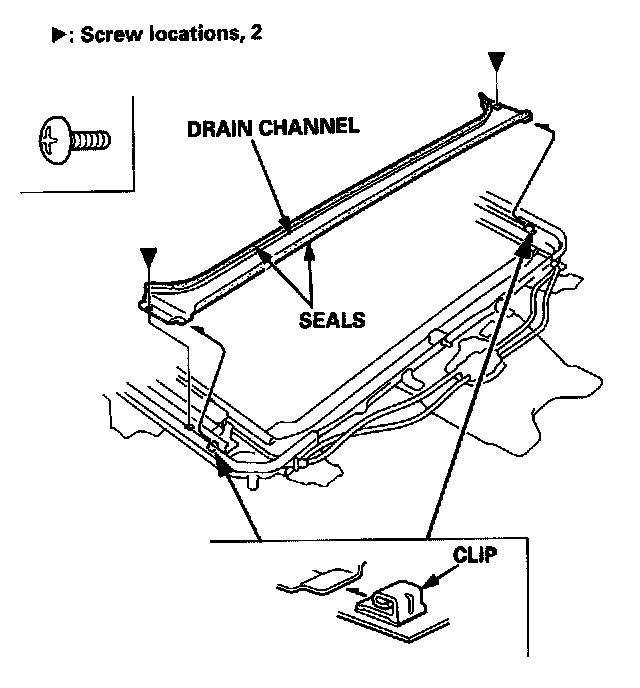

3. Remove the drain channel.





NOTE: Take care not to twist or lift up on the seals.

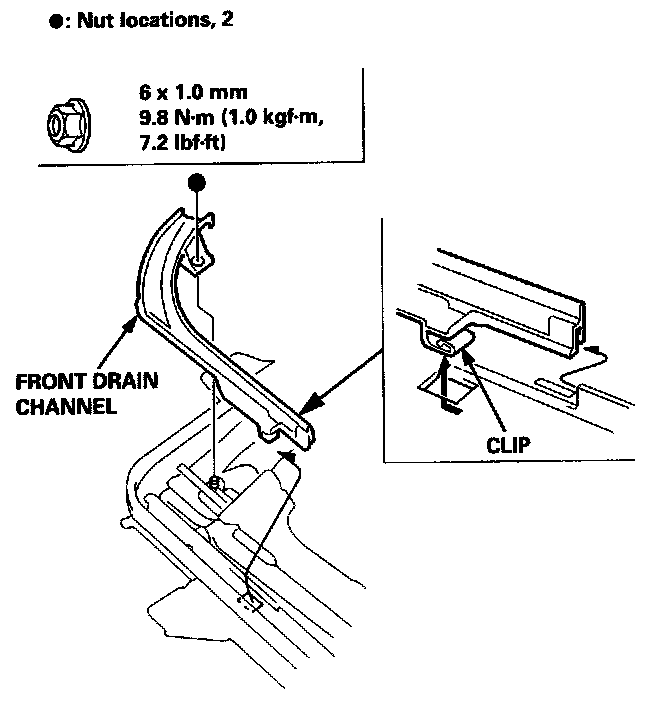

4. Remove the front drain channel on each side.

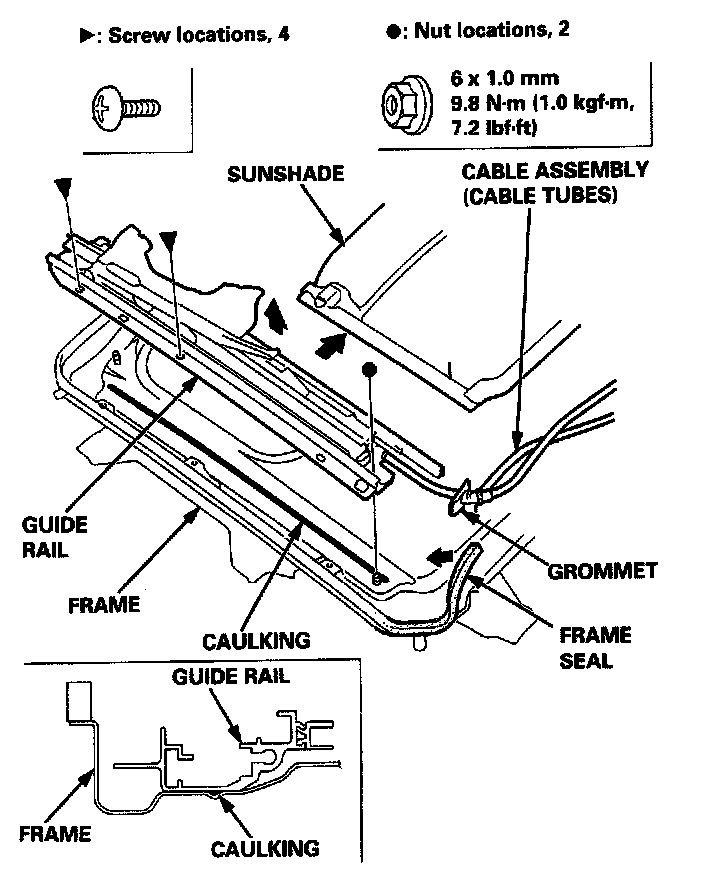

5. Remove the two screws and one nut securing each guide rail, then lift and remove both guide rails with the cable assembly. Remove the sunshade.





NOTE:
- When removing the grommet from the frame, take care not to cut or tear the frame seal.
- Take care not to bend the cable tubes.

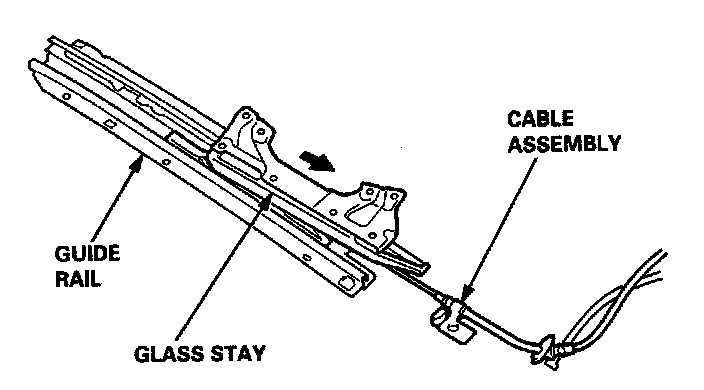

6. Slide the glass stay back, and remove it from the guide rail.

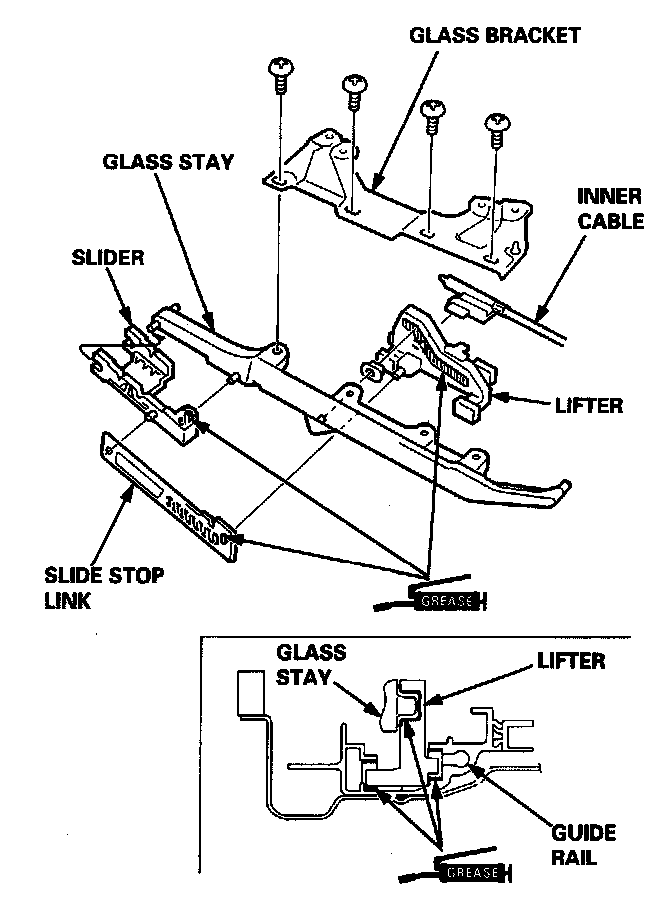

7. Separate the glass stay, slider, lifter and slide stop link.

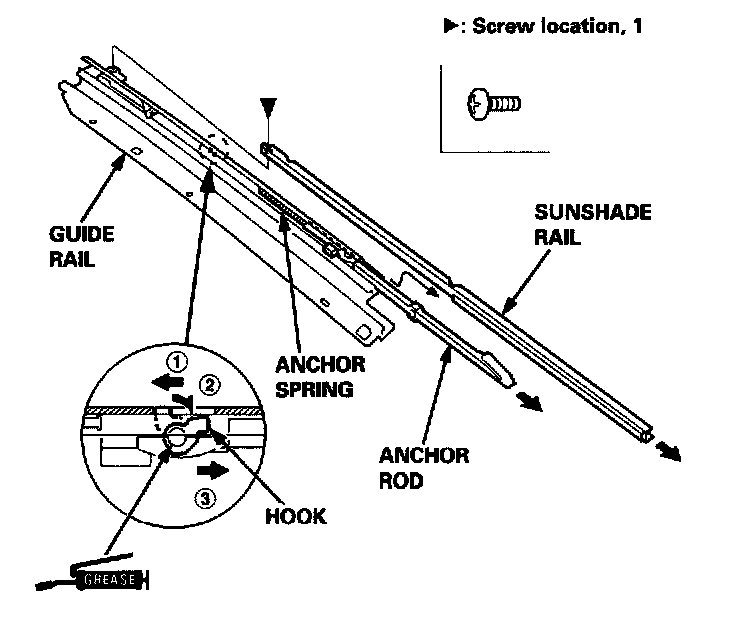

8. Remove the anchor rod, anchor spring and sunshade rail from the guide rail.





NOTE: When removing the anchor rod, turn the hook of the anchor rod with a flat tip screwdriver.

9. Installation is the reverse of the removal procedure.

NOTE:
- Damaged parts should be replaced.
- Apply multipurpose grease to each location indicated by the arrows throughout each step.
- Apply caulking to the guide rail mounting surface of the frame shown in step 5.





- Fill the groove in each grommet with sealant.
- Glue the frame seal securely.
- Before reinstalling the motor, make sure both sliders are parallel.
- Before reinstalling the motor, install the frame and glass, then check the opening drag.
