Glass Removal/Installation

Glass Removal/Installation
1. Close the glass fully.
2. Slide the sunshade all the way back.

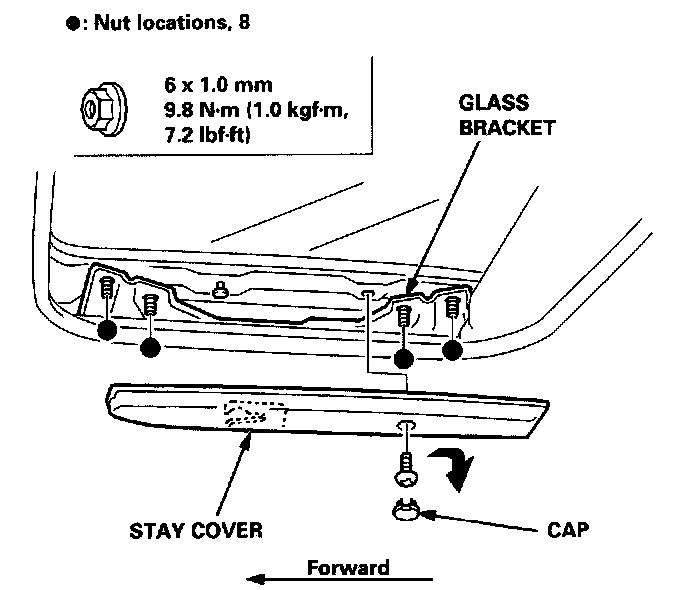

3. Remove both stay covers, then remove the nuts from both glass brackets.

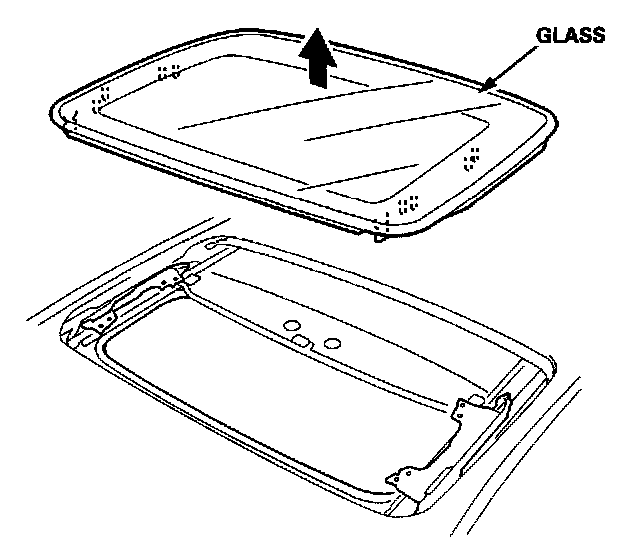

4. Remove the glass by lifting it up and pulling it forward as shown.

NOTE: Do not damage the roof panel.





5. Installation is the reverse of the removal procedure.

NOTE: Adjust the glass height alignment.

6. Check for water leaks.

NOTE: Do not use high-pressure water.
