Civic HX Coupe L4-1590cc 1.6L SOHC (VTEC-E) MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>

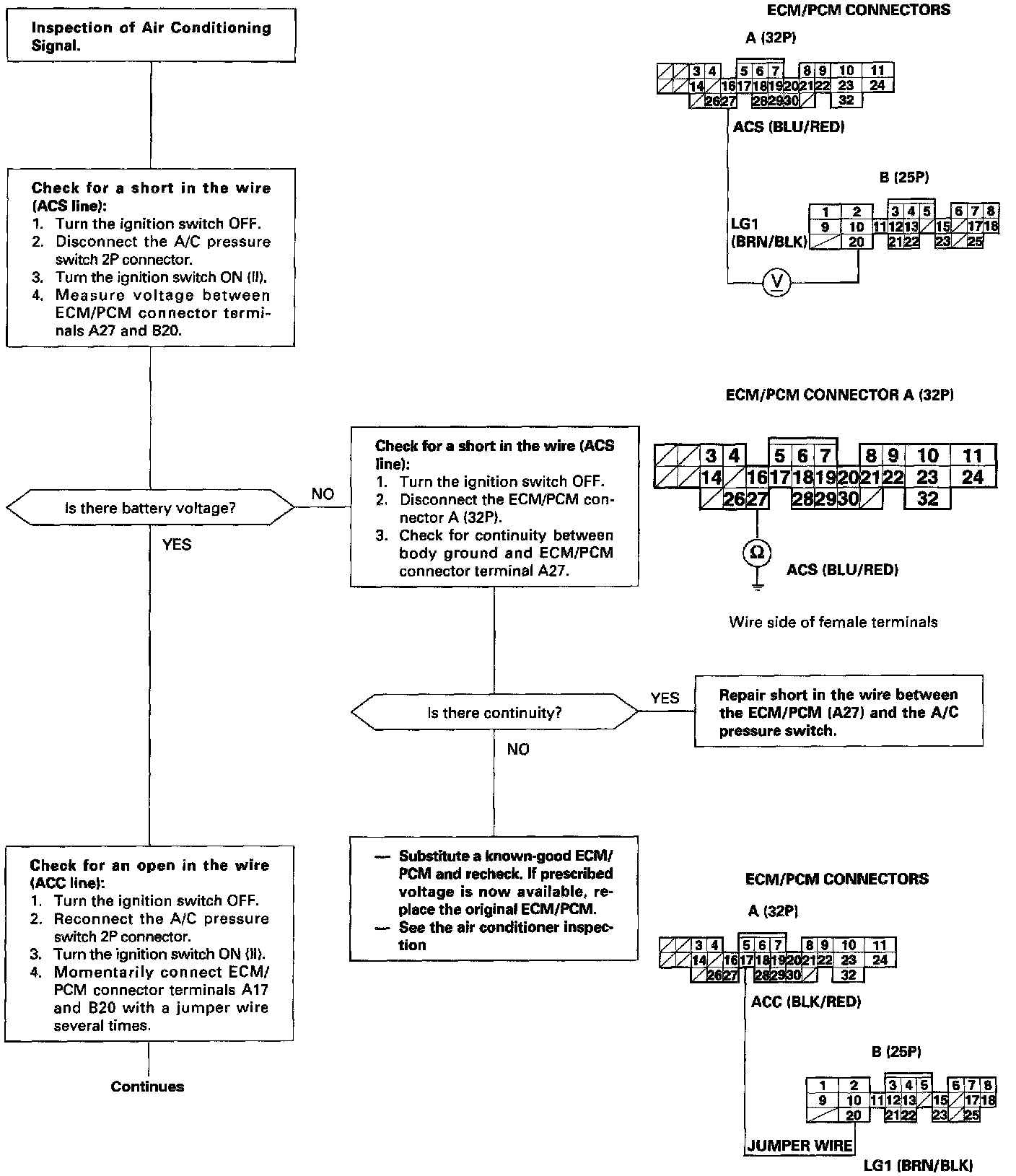

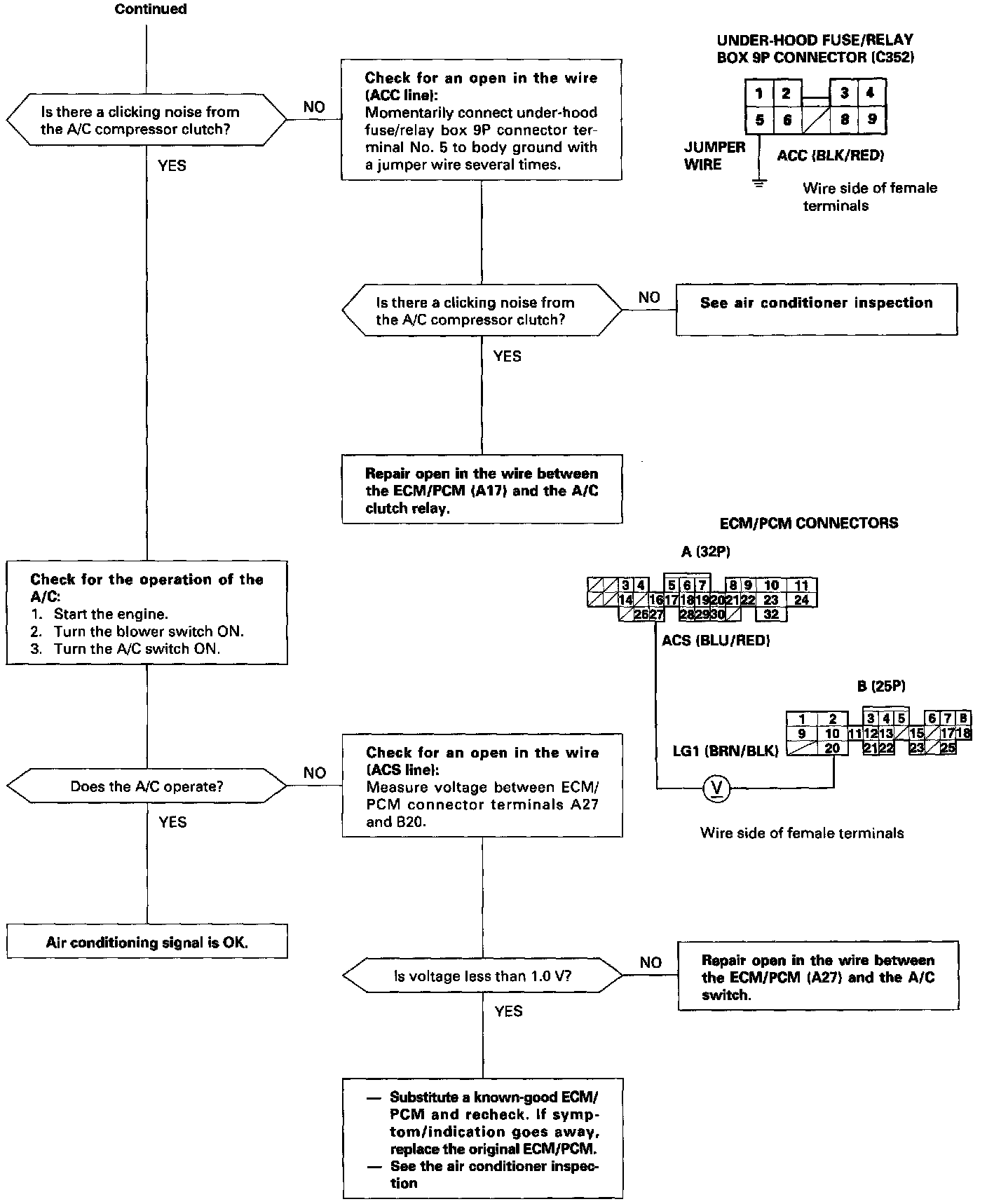

A/C Signal
>>
Testing and Inspection
>>
Except Manual Transmission
Except Manual Transmission
This signals the
ECM/PCM
when there is a demand for cooling from the air conditioning system.
