Home >> Honda >> 1999 >> Civic CX Hatchback L4-1590cc 1.6L SOHC MFI >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Diagrams >> Exploded Views

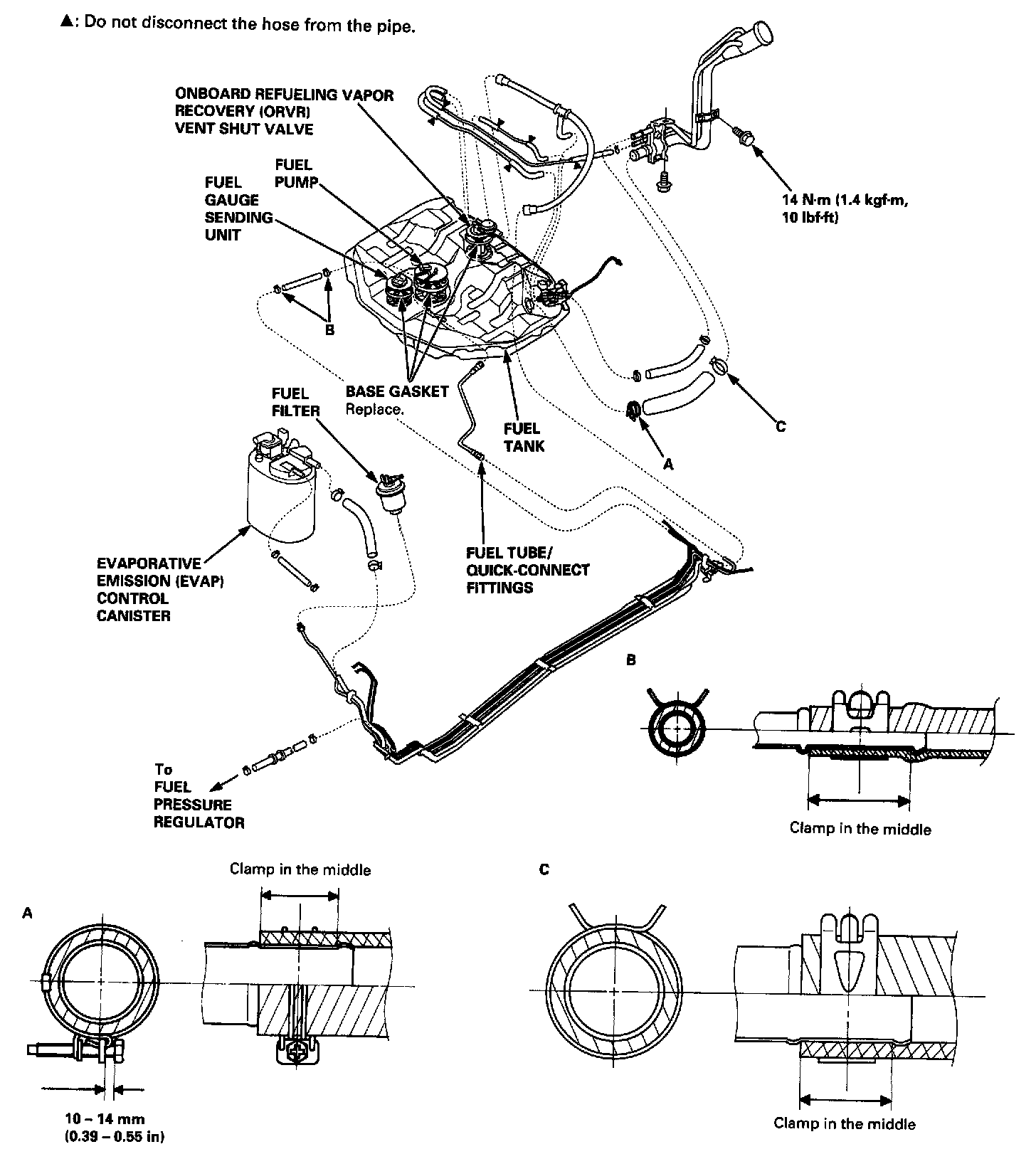

Exploded Views






NOTE: Check all hose clamps and retighten if necessary.
