Driver Airbag Replacement

REMOVAL
1. Disconnect the battery negative cable and wait at least three minutes before beginning work.

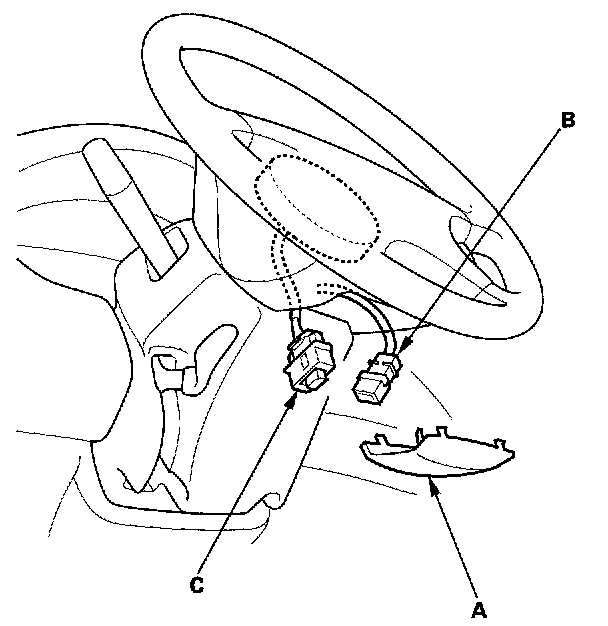

2. Remove the access panel (A) from the steering wheel, then disconnect the connector between the cable reel 2P connector (B) and driver's airbag 2P connector (C).

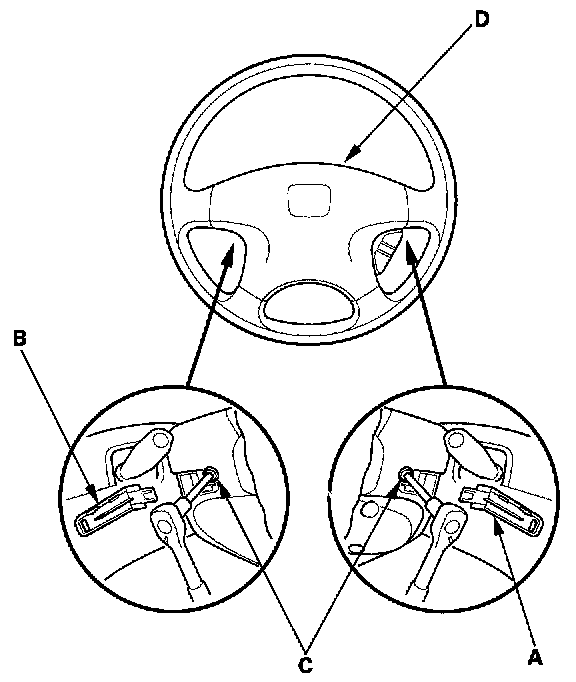

3. Remove the covers (A, B) from the steering wheel, then remove the two Torx bolts (C) using a Torx T30 bit. Then remove the driver's airbag (D).
4. Disconnect the horn connector from the steering wheel.

INSTALLATION

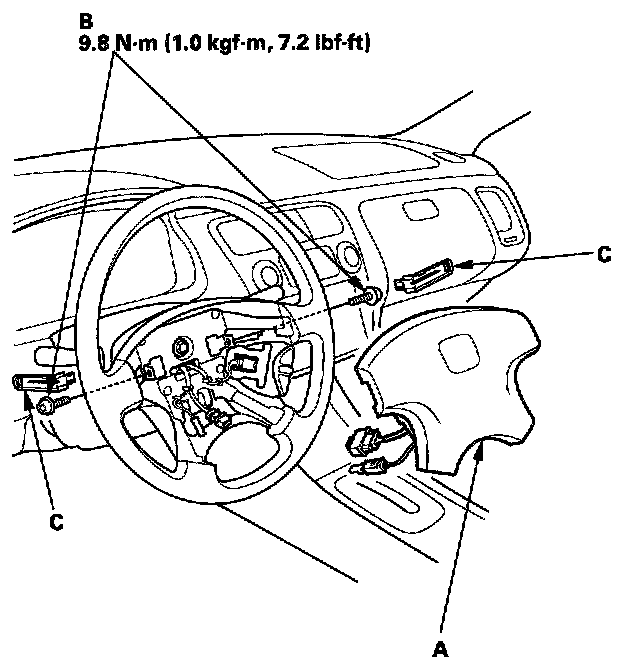

1. Place the new driver's airbag (A) in the steering wheel, and secure it with new Torx bolts (B). Install the covers (C).

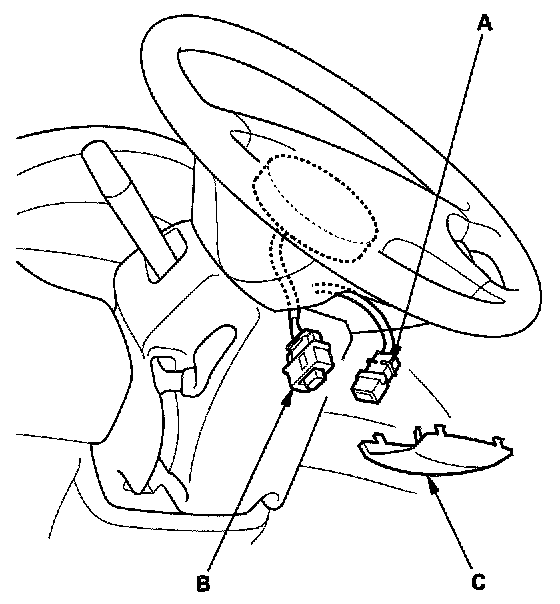

2. Connect the cable reel 2P connector (A) to the driver's airbag 2P connector (B), then install the access panel (C) on the steering wheel.
3. Connect the battery negative cable.
4. After installing the airbag, confirm proper system operation:
- Turn the ignition switch ON (II); the SRS indicator light should come on for about six seconds and then go off.
- Make sure both horn buttons work.

5. Enter the anti-theft code for the radio, then enter the customer's radio station presets.
