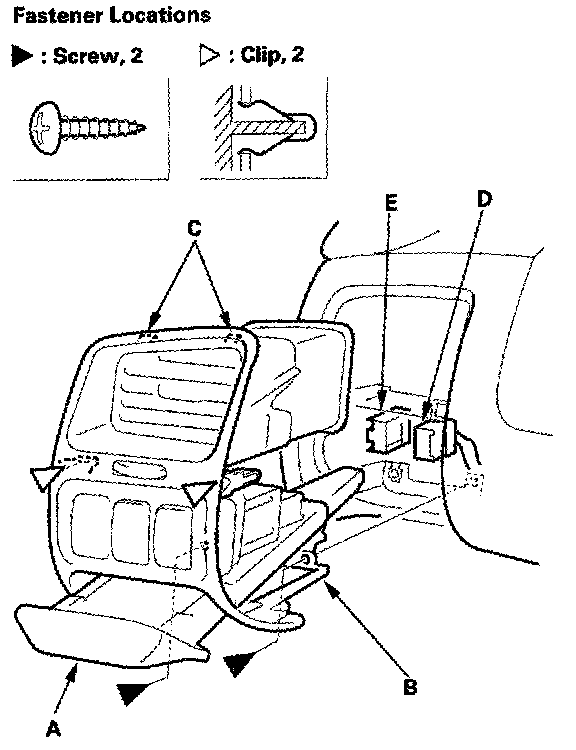

Driver's Side Vent

1. Remove the coin pocket(A), then remove the screws from under the coin pocket (A).
2. Wrap a flat-tip screwdriver with protective tape, and apply protective tape around the related parts to prevent damage. Carefully insert a flat-tip screwdriver next to the clip, and detach the clips by prying on the driver's side vent (B). Take care not to scratch the dashboard and related parts.
3. Release the retaining tabs (C), and remove the vent. Disconnect the moonroof switch connector (D) (for some models) and the cruise control master switch connector (E) (for some models).
4. Install in the reverse order of removal, and make sure the connectors are plugged in properly (for some models).
