Accord LX Sedan V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Cylinder Head Assembly

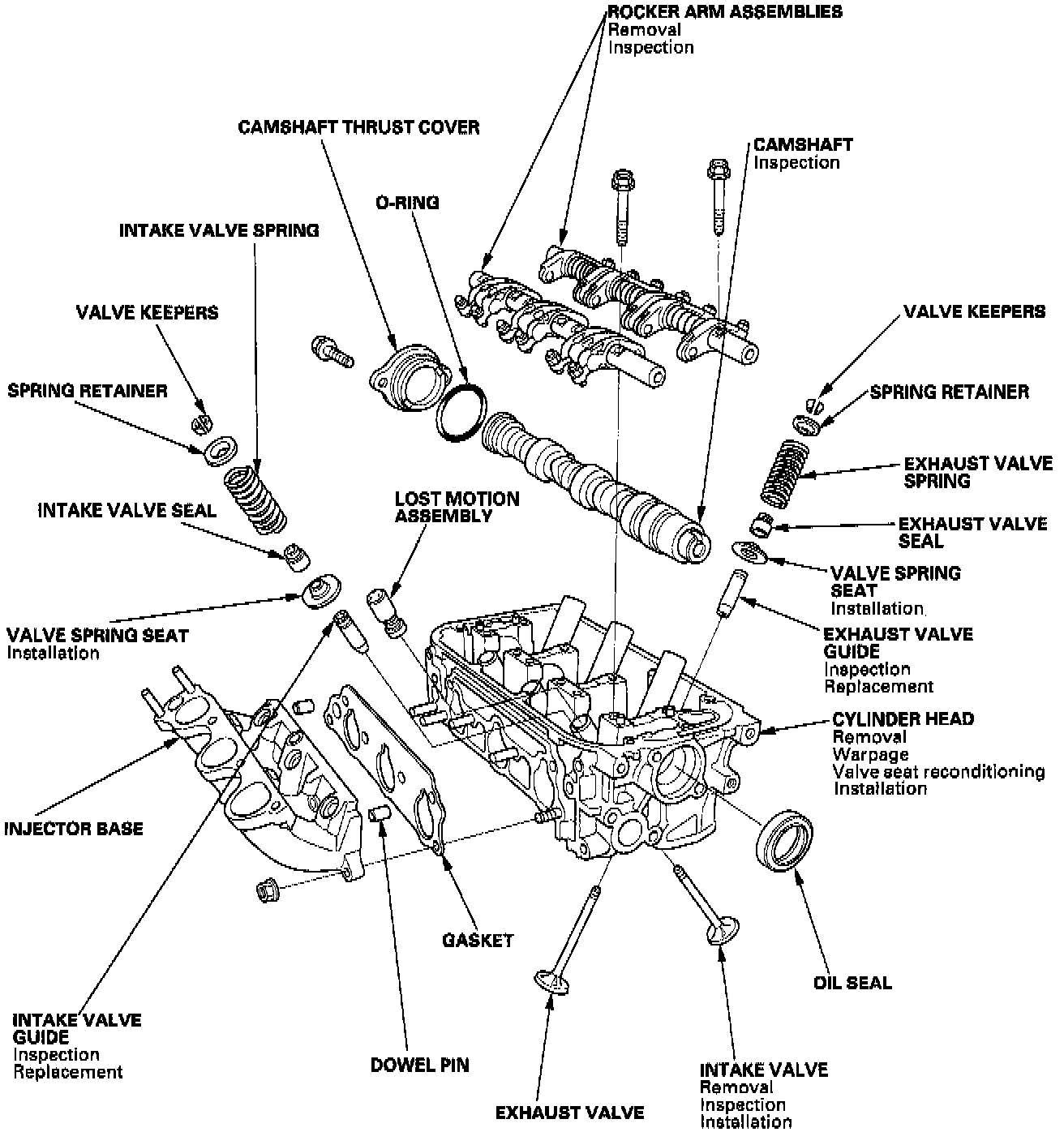

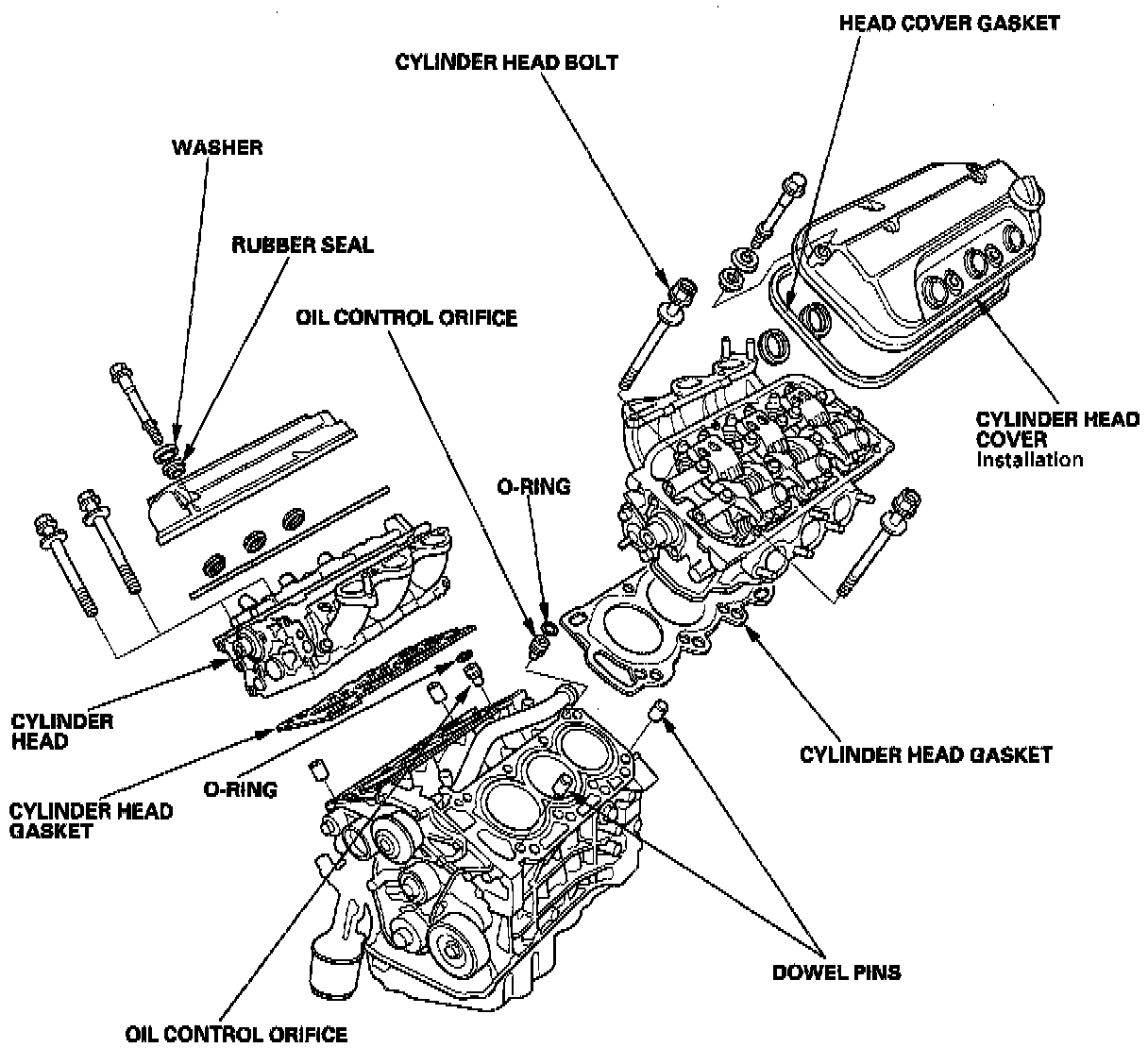

Cylinder Head Assembly
FRONT OF ENGINE
TOP OF ENGINE
HEAD INTERNAL
