Accord LX Sedan V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>

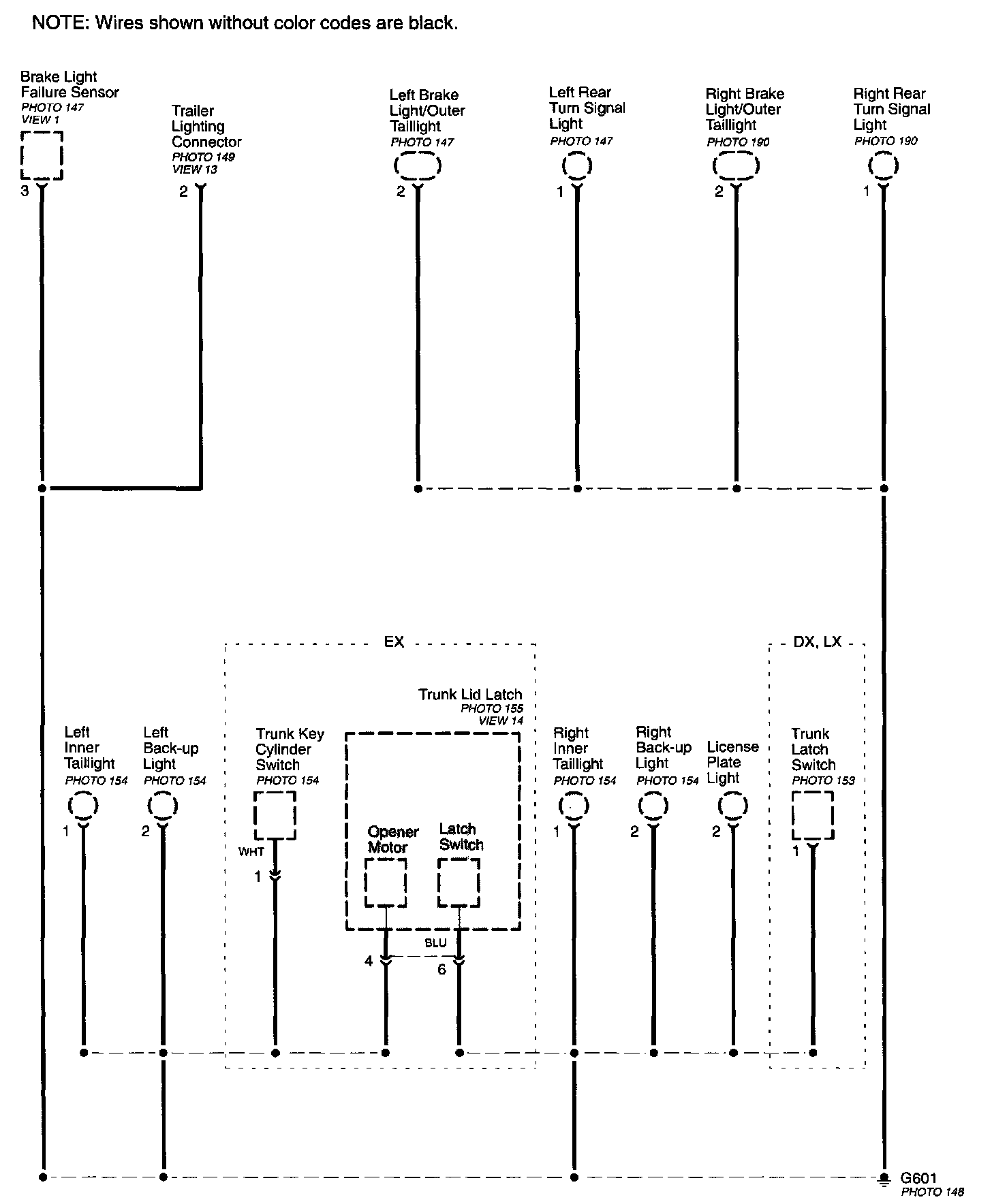

Ground Distribution
>>
G601
G601
G601:
