Home >> Honda >> 1999 >> Accord LX Sedan V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Circuit M06 >> A/T

A/T

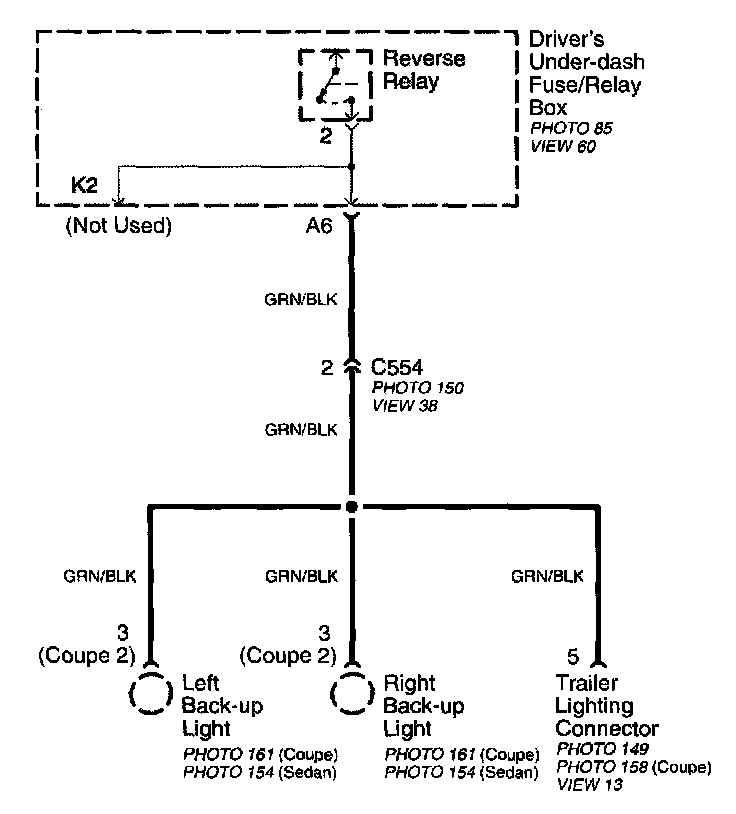

Circuit M06 (A/T):
