Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
1999
>>
Accord LX Sedan V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Circuit F12
Circuit F12

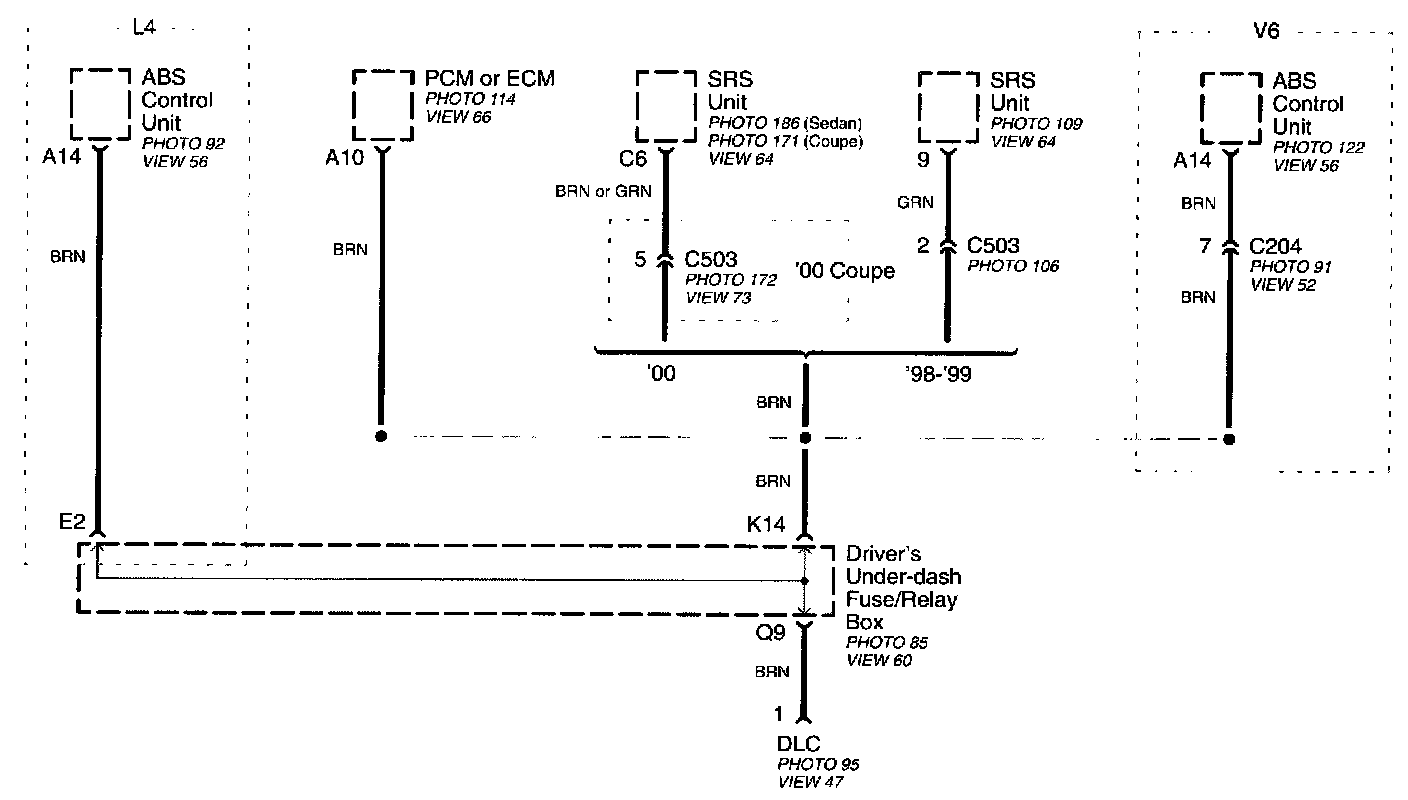

Circuit F28 - Service Check Signal:
