Home >> Honda >> 1999 >> Accord LX Sedan V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Circuit E93 >> A/T

A/T

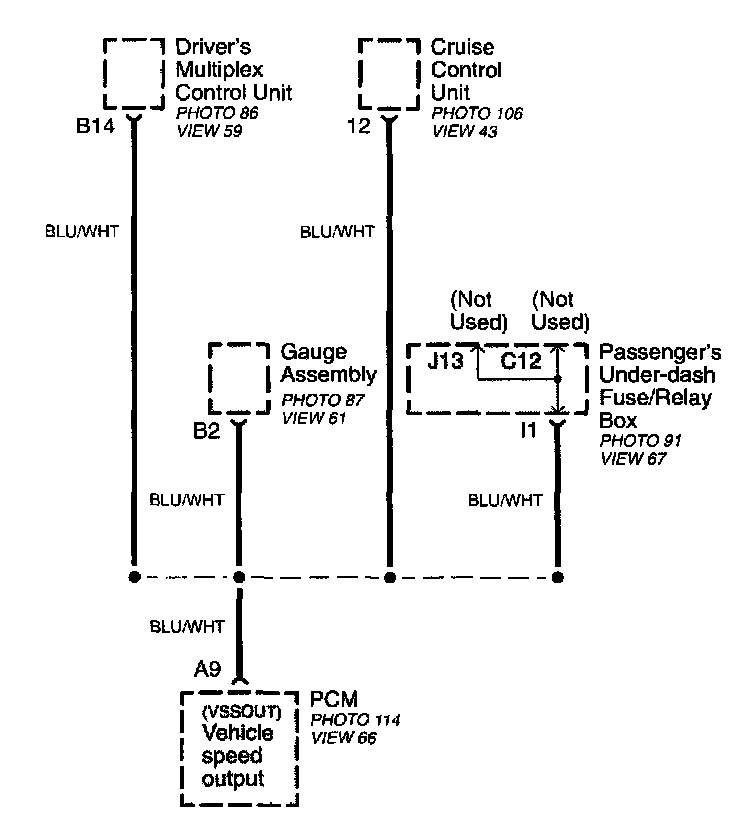

Circuit E93 (A/T):
