Honda
>>
1999
>>
Accord LX Sedan V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

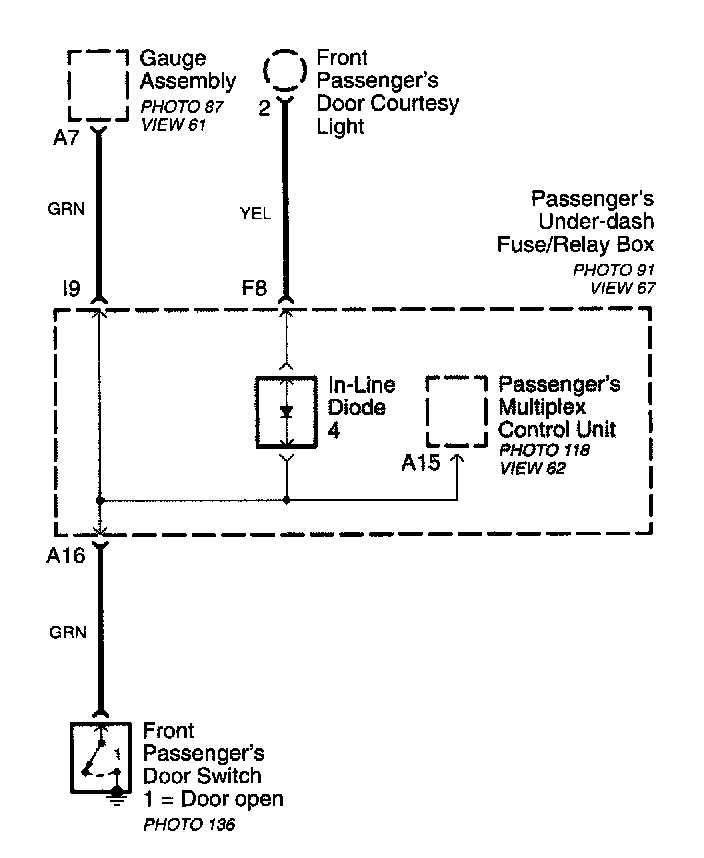

Circuit 176
Circuit 176
Circuit 176:
