Controller Test

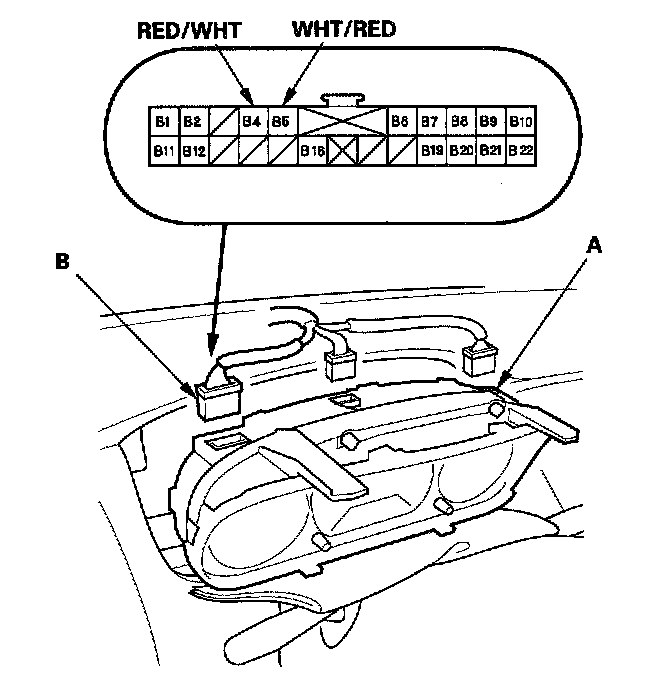

1. Remove the gauge assembly (A).
2. Disconnect the 22P connector (B).
3. Measure resistance between the B4 and B5 terminals while rotating the adjusting dial. Resistance should vary from 0 to 20,000 ohms as the dial is rotated.
