Home >> Honda >> 1999 >> Accord LX Coupe L4-2254cc 2.3L SOHC (VTEC) MFI >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Distributor >> Service and Repair >> Disassembly/Reassembly

Disassembly/Reassembly

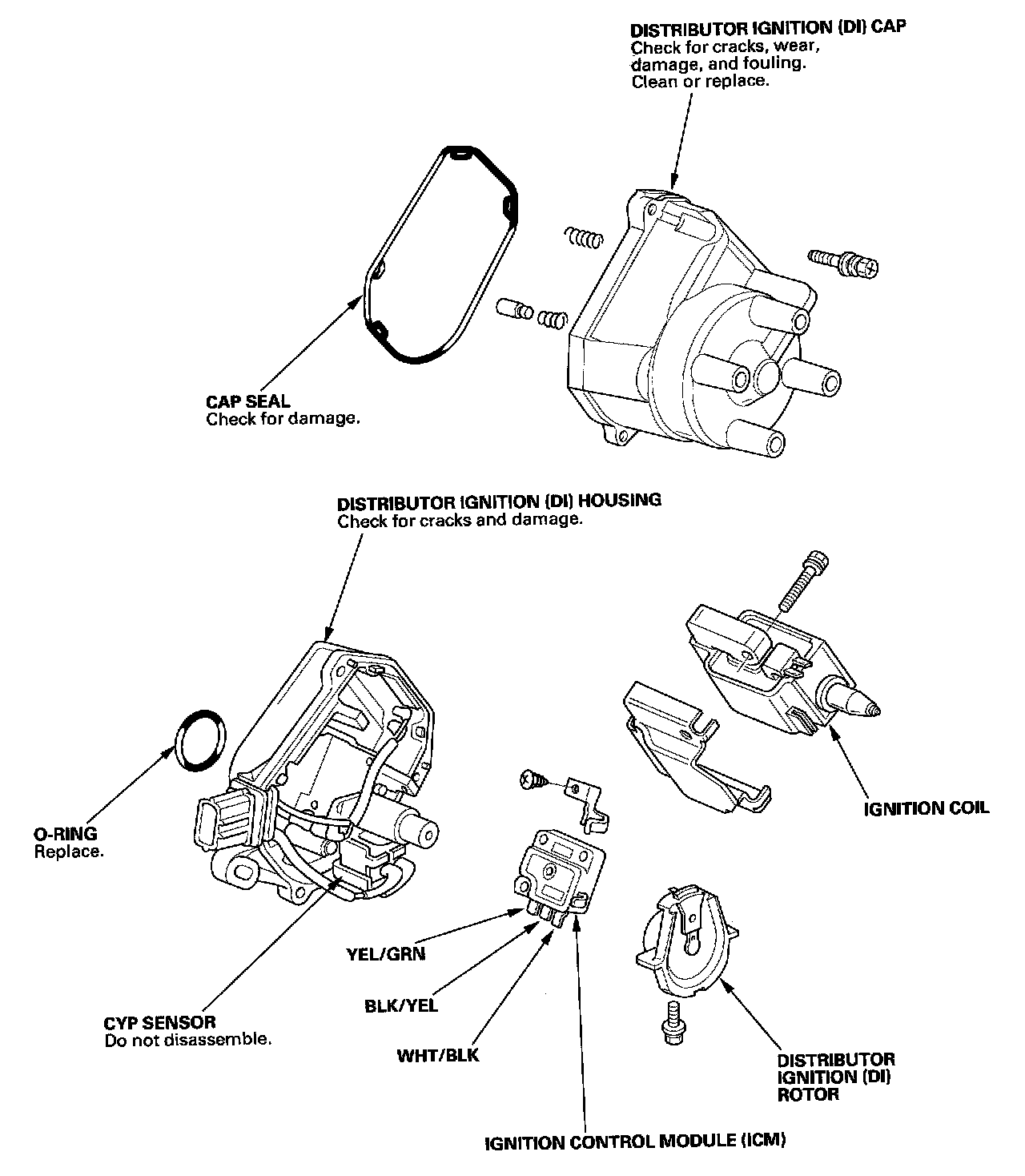

F23A1 and F23A4 2.3L SOHC VTEC:

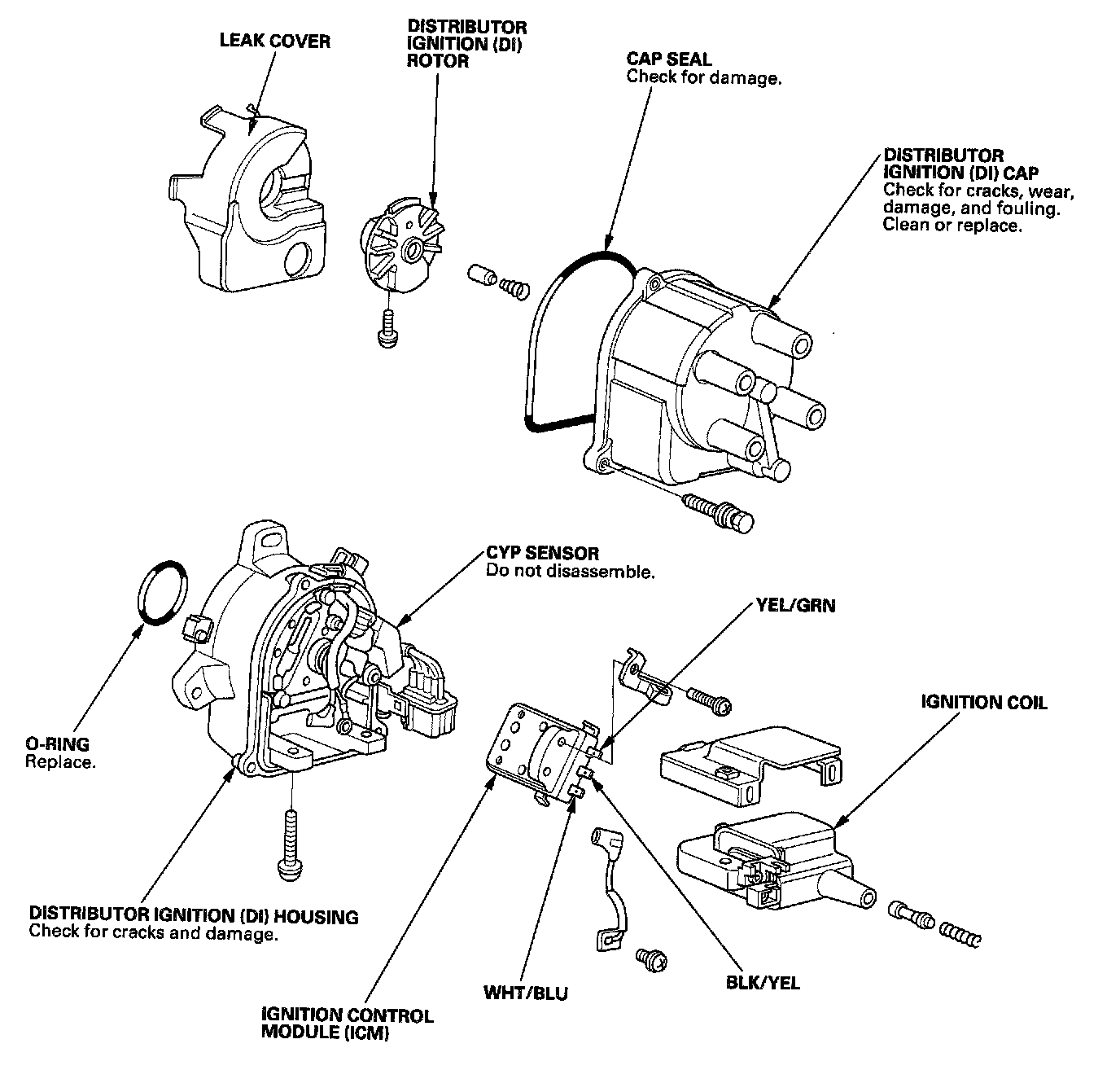

F23A5 2.3L SOHC Non-VTEC:
