Secondary HO2S

Secondary HO2S Replacement

Special Tools Required
Commercially available 02 sensor wrench SNAP-ON YA8875 or SF Tools 93750 or equivalent

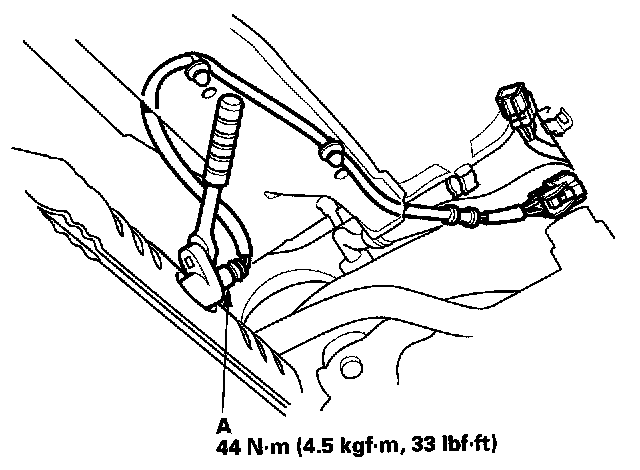

1. Disconnect the secondary HO2S 4P connector, then remove the secondary HO2S (A).
2. Install the secondary HO2S in the reverse order of removal.
