Primary HO2S

Primary HO2S Replacement

Special Tools Required
Commercially available 02 sensor wrench SNAP-ON YA8875 or SP Tools 93750 or equivalent

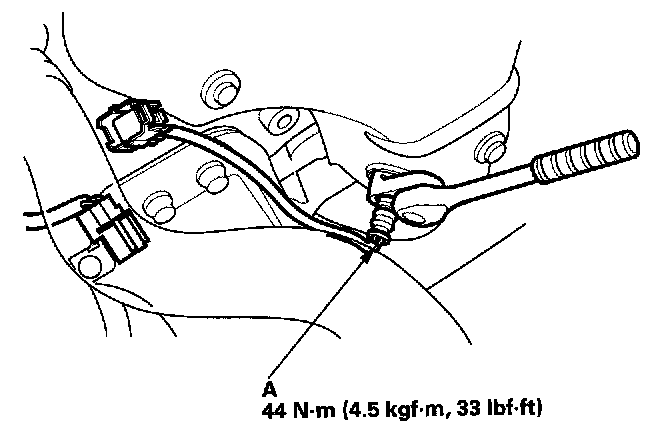

1. Disconnect the primary HO2S 4P connector, then remove the primary HO2S (A).
2. Install the primary HO2S in the reverse order of removal.
