Disassembly and Assembly

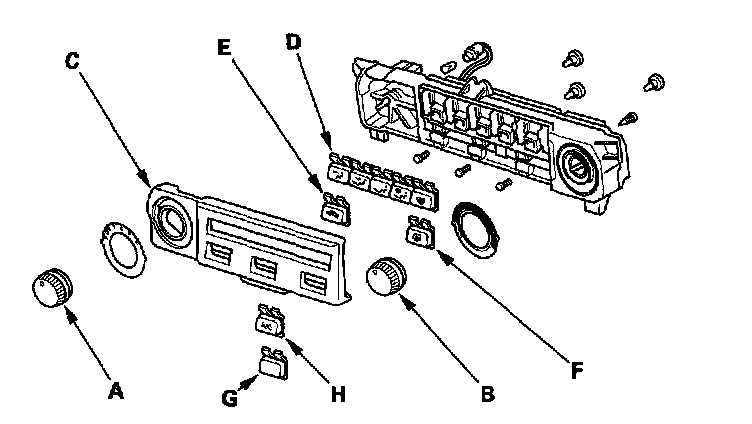

1. Remove the fan switch (A) and temperature control (B) dials, then remove the front panel (C). Remove the mode control switch (D), recirculation control switch (E), rear defogger switch (F) and A/C switch lid (G) (or A/C switch (H)) buttons.
2. Reassemble the heater control panel in the reverse order of removal.
