Cylinder Block Flatness

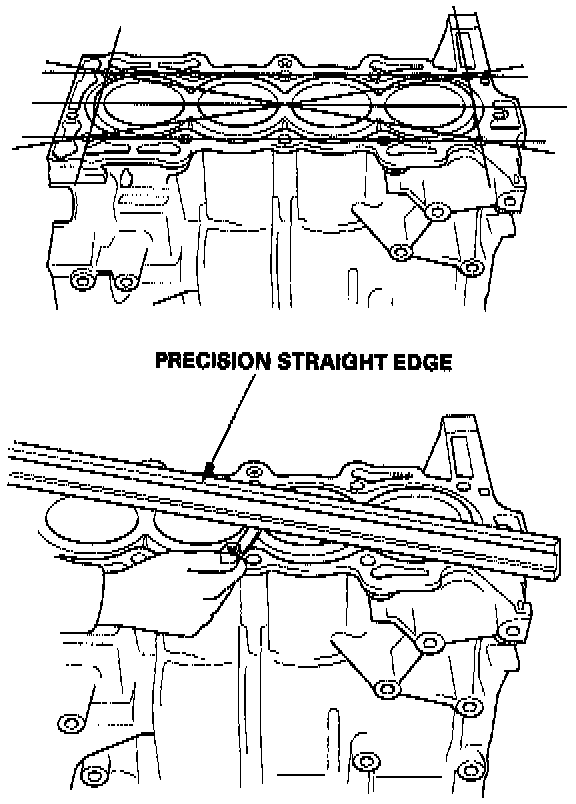

Engine Block Warpage:
Standard (New): 0.07 mm (0.003 inch) maximum
Service Limit: 0.10 mm (0.004 inch)
