Home >> Honda >> 1999 >> Accord LX Coupe L4-2254cc 2.3L SOHC (VTEC) MFI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Accumulator, A/T

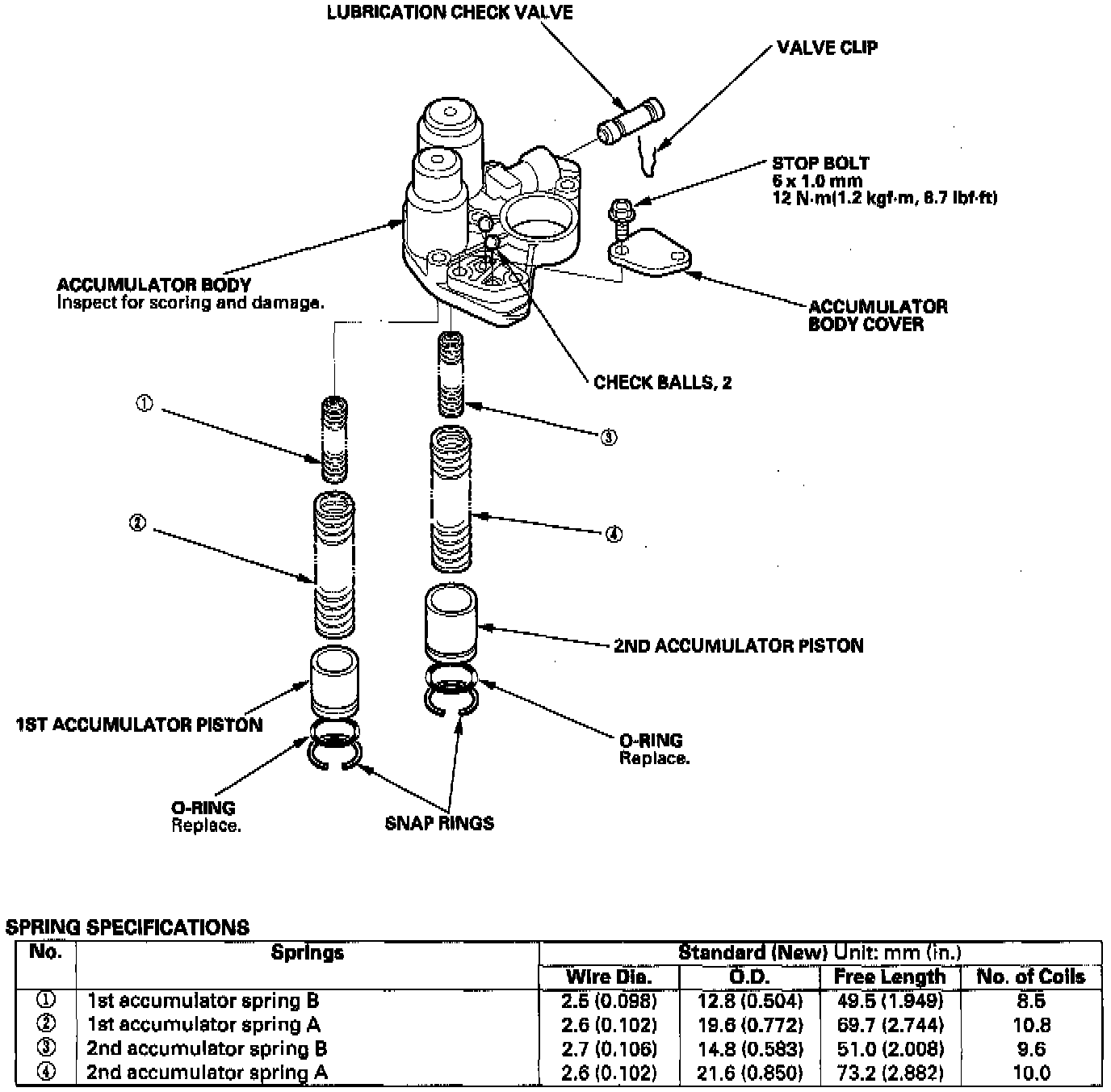

Accumulator, A/T






Accumulator Body
