Home >> Honda >> 1999 >> Accord EX Sedan L4-2254cc 2.3L SOHC (VTEC) MFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Crankshaft, Engine >> Service Specifications >> Out-of-Round and Taper

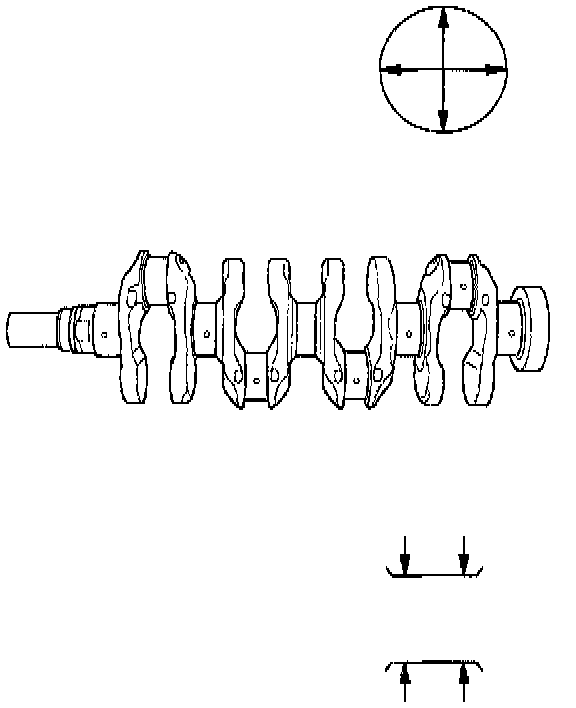

Out-of-Round and Taper





Journal Out-of Round:
Standard (New): 0.005 mm (0.0002 inch) maximum
Service Limit: 0.006 mm (0.0002 inch)

Journal Taper:
Standard (New): 0.005 mm (0.0002 inch) maximum
Service Limit: 0.006 mm (0.0002 inch)
