Oil Clearance

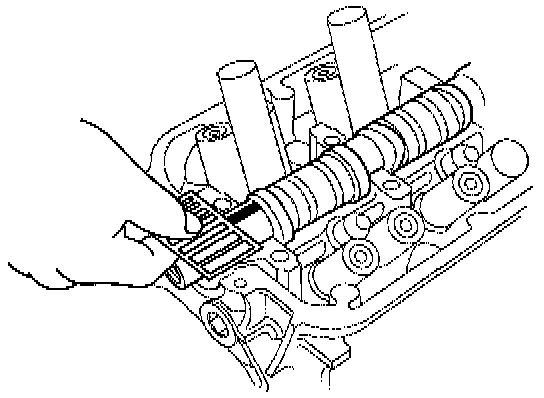

Camshaft-to-Holder Oil Clearance:
Standard (New): 0.050 - 0.089 mm (0.0020 - 0.0035 inch)
Service Limit: 0.015 mm (0.006 inch)
