Child Seat Tether Attachment: Service and Repair

Child Anchor Plates:

Attachment points are provided for a rear seat mounted child restraint system which uses a top tether. The attachment points are located on the rear shelf, just behind the rear seat-back.

NOTE:
- Do not remove the toothed washer (E) from the child seat anchor plate. Use the child seat anchor plate with the toothed washer attached to it.
- When installing a child seat on the rear seat, follow the instructions of the manufacturer of the child seat.
- Additional anchor plates are available.
- Make sure the rear seat-backs are locked firmly when installing a child seat.

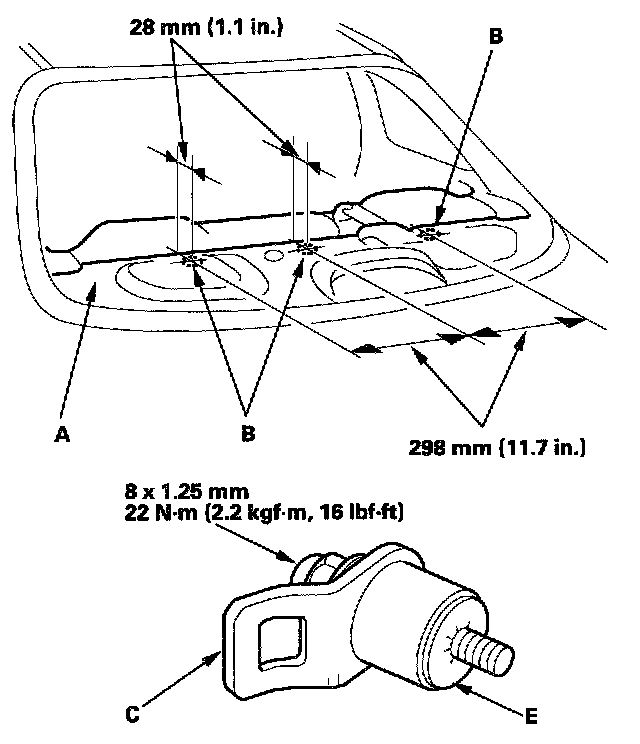

The rear shelf (A) is perforated at each attachment point (B). Use a razor blade or sharp knife to carefully cut a 1 inch diameter circle at the attachment point, then cut the rear shelf along the perforations to make a hole. When using a child seat with a top tether, install the child seat anchor plates (C) securely.
