Honda
>>
1999
>>
Accord EX Coupe V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Stereo Sound System
>>
Circuits
Circuits

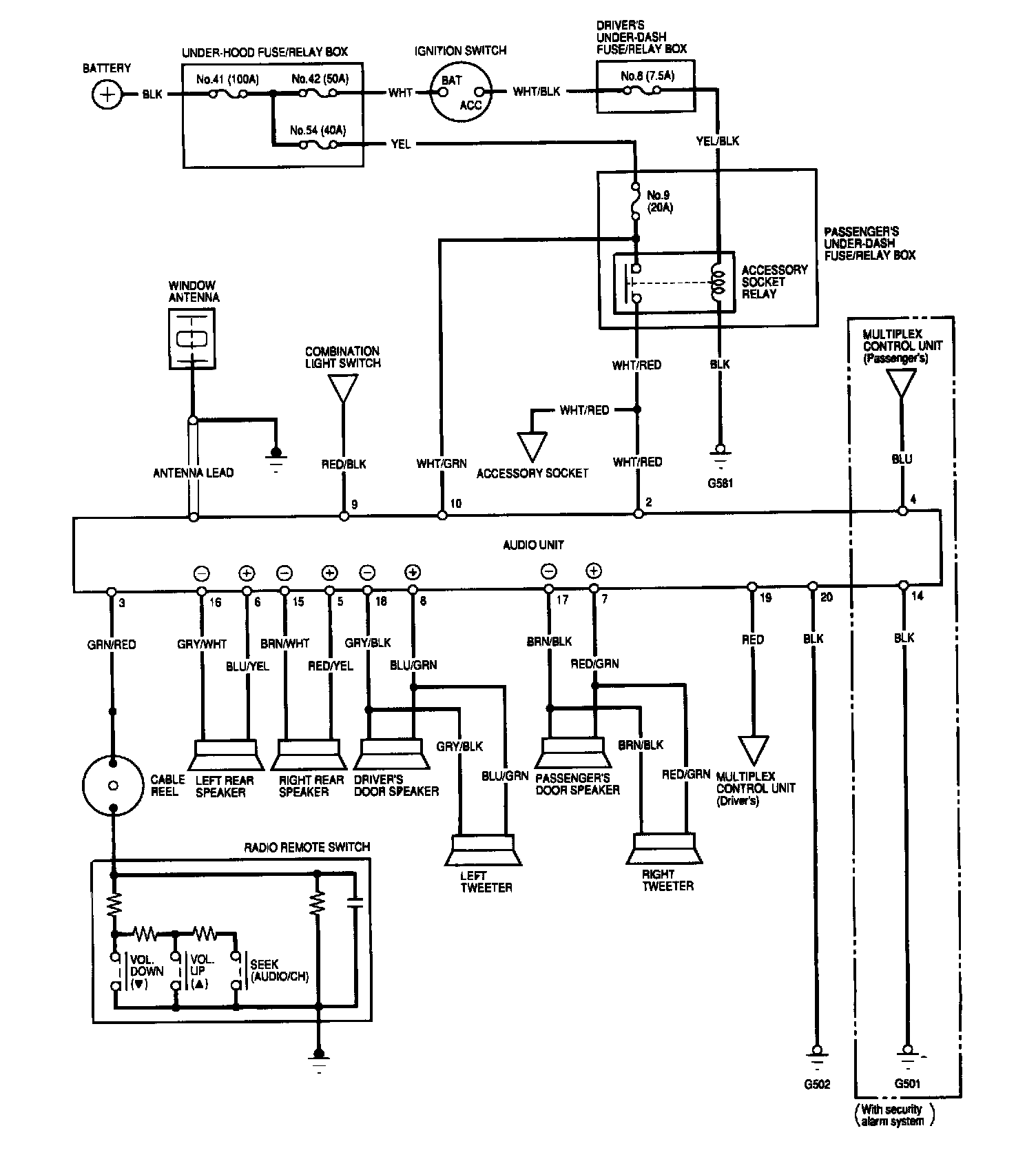

Stereo Sound System:
