Home
>>
Honda
>>
1999
>>
Accord EX Coupe V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Ground Distribution
>>

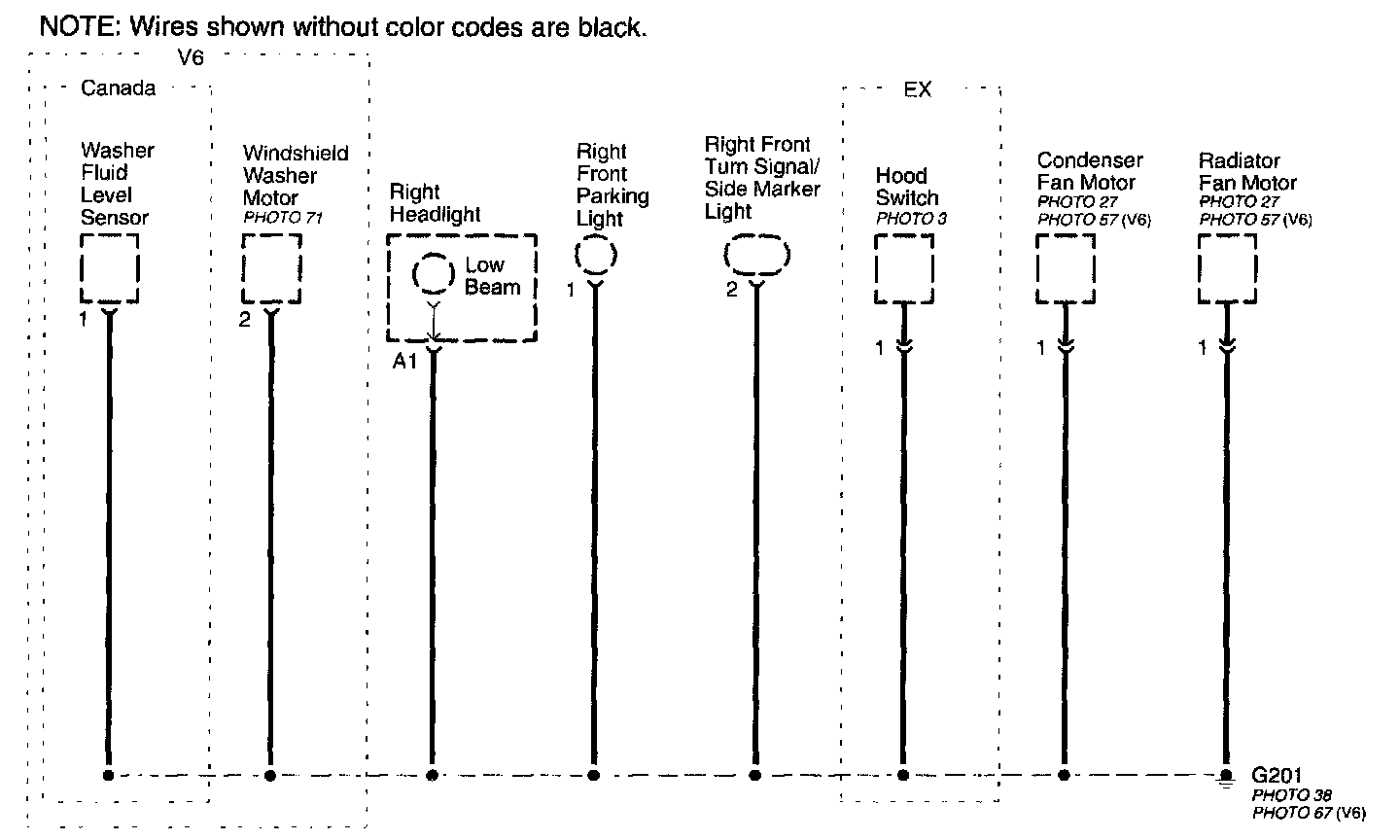

G 201
G 201
G201:
