Home >> Honda >> 1999 >> Accord EX Coupe V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Circuit 13

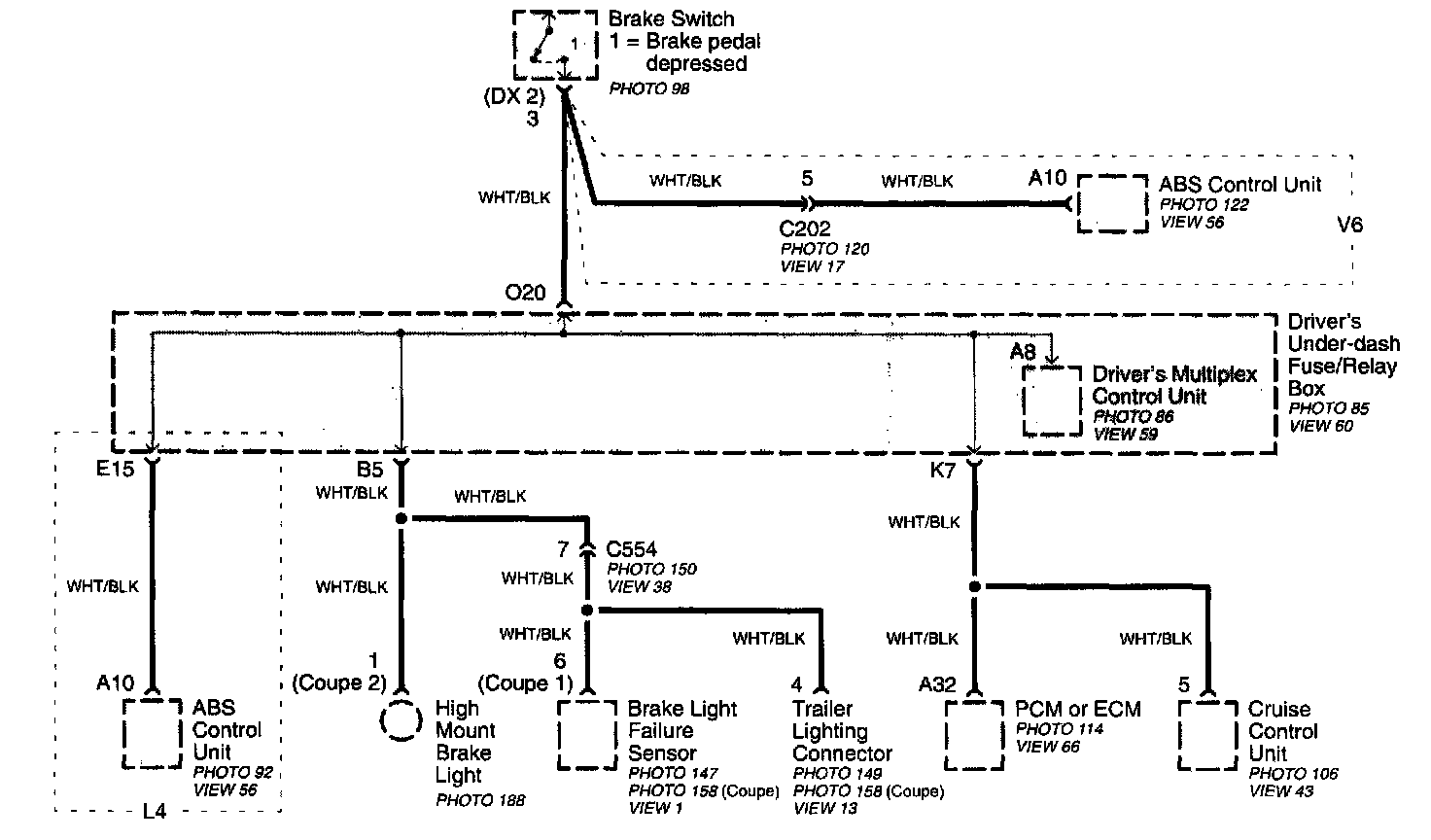

Circuit 13

Circuit 13:
