ABS Pump Motor Relay Test

Normally-open type B:




1. Check for continuity between the terminals.
- There should be continuity between the No. 1 and No. 3 terminals when power and ground are connected to the No. 2 and No. 4 terminals.
- There should be no continuity between the No. 1 and No. 3 terminals when power is disconnected.

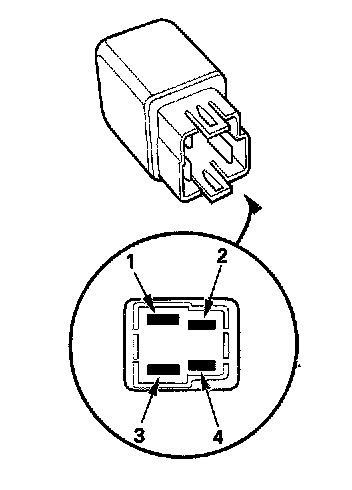

ABS Pump Motor Relay:

ABS Pump Motor relay
