2ND Clutch Pressure Switch Replacement

Replacement





1. Remove the rear stiffener (A).
2. Disconnect the 2nd clutch pressure switch connector (B).

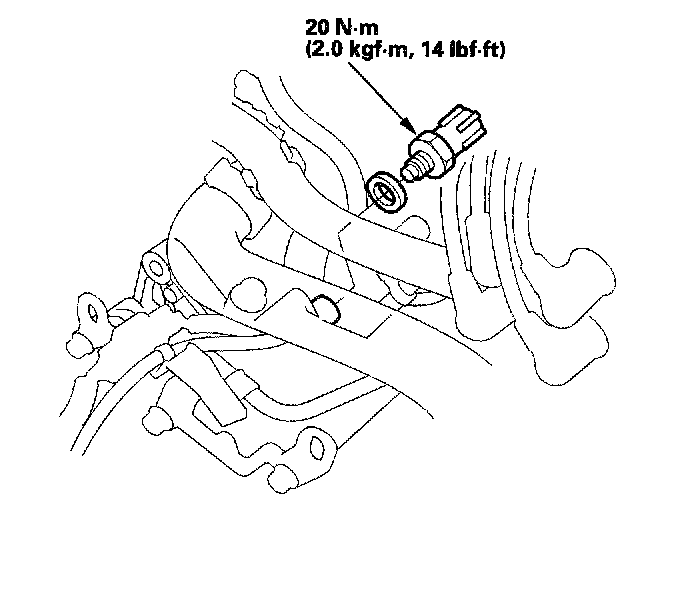

3. Replace the 2nd clutch pressure switch, then install a new one with a new sealing washer. Tighten the switch on the metal part, not the plastic part.





4. Reconnect the connector (A), making sure there is no water, oil, dust, or other foreign particles inside it.
5. Install the rear stiffener (B).
