Idler Gear: Service and Repair

INSTALLATION

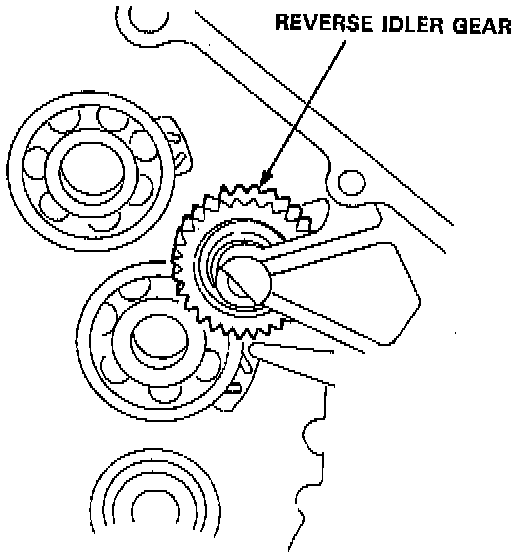

1. Install the reverse idler gear.

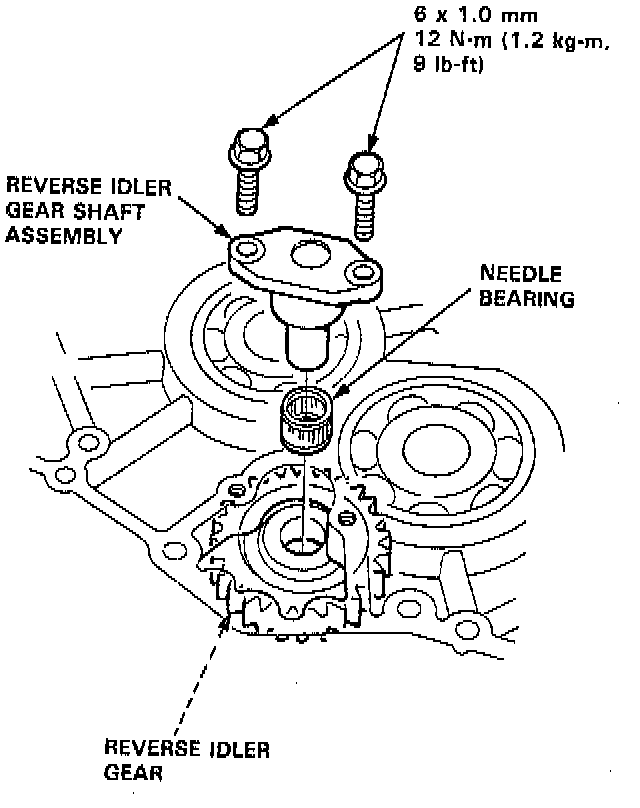

2. Install the reverse idler gear shaft holder and needle bearing into the transmission housing, then tighten the bolts.
