Home
>>
Honda
>>
1996
>>
Del Sol L4-1590cc 1600
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Trunk Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Schematics
Schematics

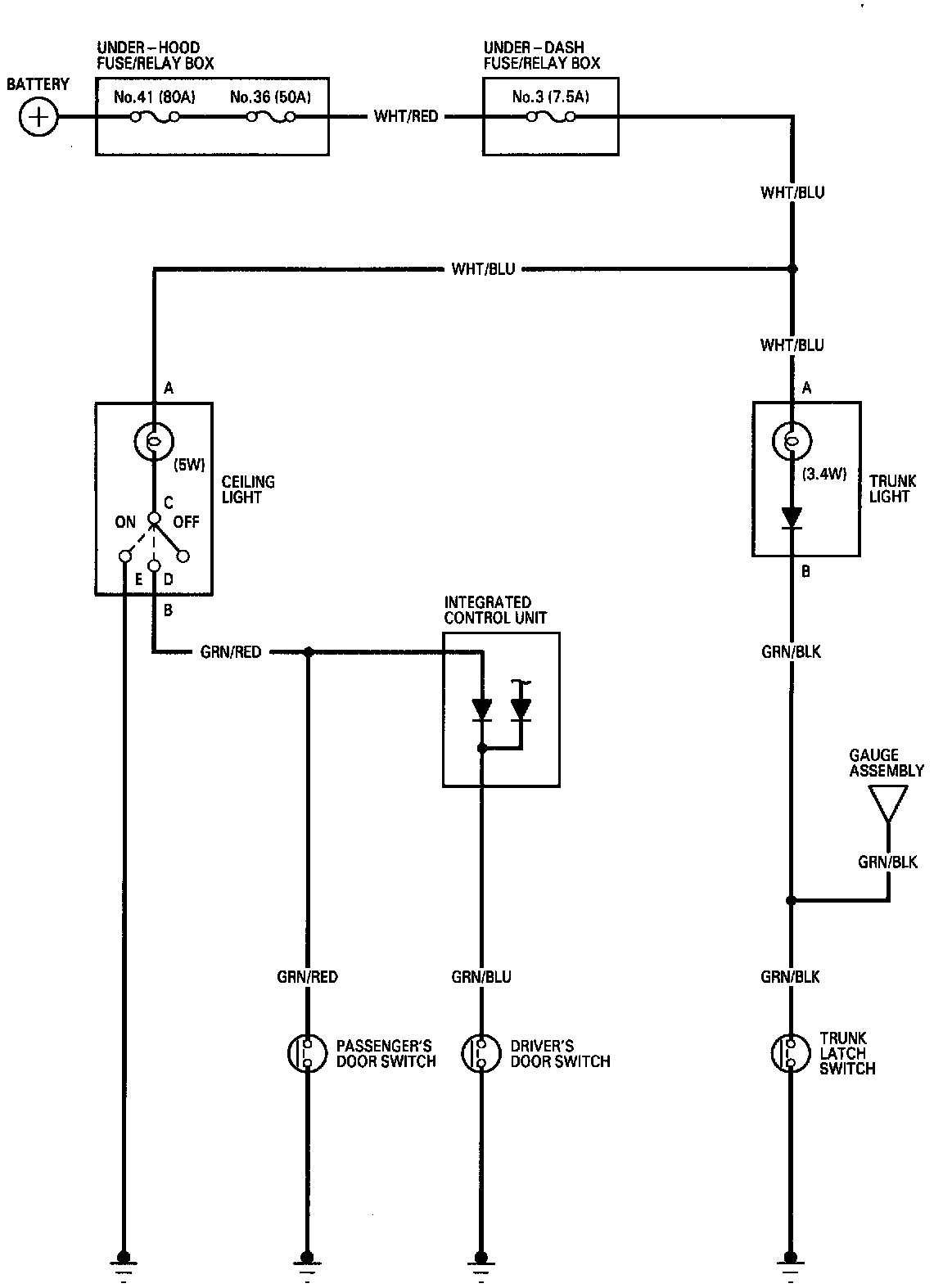

Ceiling/Trunk Lights-Circuit Diagram:
